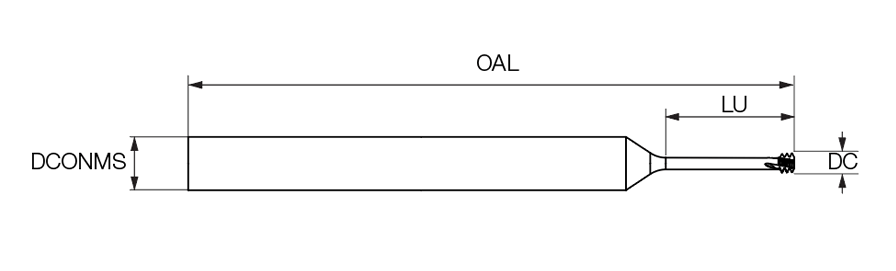

| Designation | FTDZ | DC | LU | DCONMS | NOF | OAL | Shank  | GICAT | GIREM | giic | Grade & Vc |
| 3410307 TM-5/8-18UNF-49-TMUS41 | | 0.00 | 0.00 | 0.00 | 0 | 0.00 | | 3410307 | | 1 | 1 |
| 3410302 TM-0-80UNF-8-C3-TMUS31 | 0-80 UNF | 1.15 | 8.00 | 3.00 | 3 | 39.00 | C | 3410302 | | 1 | 1 |
| 3410292 TM-1-72UNF-6-C3-TMUS31 | 1-72 UNF | 1.45 | 6.00 | 3.00 | 3 | 39.00 | C | 3410292 | Specially designed for the production of dental implants | 1 | 1 |
| 3410290 TM-1/2-13UNC-27.5-TMUS31 | 1/2-13 UNC | 9.20 | 27.50 | 10.00 | 3 | 73.00 | C | 3410290 | | 1 | 1 |
| 3410279 TM-1/4-20UNC-14-C6-TMUS31 | 1/4-20 UNC | 4.75 | 14.00 | 6.00 | 3 | 58.00 | C | 3410279 | | 1 | 1 |
| 3410284 TM-1/4-20UNC-19-C6-TMUS31 | 1/4-20 UNC | 4.75 | 19.00 | 6.00 | 3 | 58.00 | C | 3410284 | | 1 | 1 |
| 3410277 TM-1/4-28UNF-14.5-TMUS31 | 1/4-28 UNF | 5.00 | 14.50 | 6.00 | 3 | 58.00 | C | 3410277 | | 1 | 1 |
| 3410282 TM-1/4-28UNF-19-C6-TMUS31 | 1/4-28 UNF | 5.00 | 19.00 | 6.00 | 3 | 58.00 | C | 3410282 | | 1 | 1 |
| 3410286 TM-10-32UNF-10.5-TMUS31 | 10-32 UNF | 3.70 | 10.50 | 6.00 | 3 | 58.00 | C | 3410286 | | 1 | 1 |
| 3410285 TM-10-32UNF-15-C6-TMUS31 | 10-32 UNF | 3.70 | 15.00 | 6.00 | 3 | 58.00 | C | 3410285 | | 1 | 1 |
| 3410305 TM-10-20-24UNC-15-TMUS31 | 10,20-24 UNC | 3.50 | 15.50 | 6.00 | 3 | 58.00 | C | 3410305 | | 1 | 1 |
| 3410303 TM-2-56UNC-11.4-C3-TMUS31 | 2-56 UNC | 1.65 | 11.40 | 3.00 | 3 | 39.00 | C | 3410303 | | 1 | 1 |
| 3410271 TM-2-56UNC-4.4-C6-TMUS31 | 2-56 UNC | 1.65 | 4.40 | 6.00 | 3 | 58.00 | C | 3410271 | | 1 | 1 |
| 3410296 TM-2-56UNC-6.6-C3-TMUS31 | 2-56 UNC | 1.65 | 6.60 | 3.00 | 3 | 39.00 | C | 3410296 | | 1 | 1 |
| 3410297 TM-2-56UNC-6.6-C6-TMUS31 | 2-56 UNC | 1.65 | 6.60 | 6.00 | 3 | 58.00 | C | 3410297 | | 1 | 1 |
| 3410300 TM-2-56UNC-9.2-C3-TMUS31 | 2-56 UNC | 1.65 | 9.20 | 3.00 | 3 | 39.00 | C | 3410300 | | 1 | 1 |
| 3410272 TM-3-48UNC-5.2-C6-TMUS31 | 3-48 UNC | 1.90 | 5.20 | 6.00 | 3 | 58.00 | C | 3410272 | | 1 | 1 |
| 3410288 TM-3/8-16UNC-22-C8-TMUS31 | 3/8-16 UNC | 6.70 | 22.00 | 8.00 | 3 | 64.00 | C | 3410288 | | 1 | 1 |
| 3410308 TM-3/8-16UNC-30.2-TMUS31 | 3/8-16 UNC | 6.70 | 30.20 | 8.00 | 3 | 64.00 | C | 3410308 | | 1 | 1 |
| 3410301 TM-4-40UNC-12-C3-TMUS31 | 4-40 UNC | 2.10 | 12.00 | 3.00 | 3 | 39.00 | C | 3410301 | | 1 | 1 |
| 3410273 TM-4-40UNC-6.3-C6-TMUS31 | 4-40 UNC | 2.10 | 6.30 | 6.00 | 3 | 58.00 | C | 3410273 | | 1 | 1 |
| 3410304 TM-4-40UNC-8-C3-TMUS31 | 4-40 UNC | 2.10 | 8.00 | 3.00 | 3 | 39.00 | C | 3410304 | | 1 | 1 |
| 3410298 TM-4-40UNC-8-C6-TMUS31 | 4-40 UNC | 2.10 | 8.00 | 6.00 | 3 | 58.00 | C | 3410298 | | 1 | 1 |
| 3410280 TM-5-40UNC-9.6-C6-TMUS31 | 5-40 UNC | 2.45 | 9.60 | 6.00 | 3 | 58.00 | C | 3410280 | | 1 | 1 |
| 3410287 TM-5/16-18UNC-17-TMUS31 | 5/16-18 UNC | 6.00 | 17.00 | 6.00 | 3 | 58.00 | C | 3410287 | | 1 | 1 |
| 3410293 TM-5/16-18UNC-23-TMUS31 | 5/16-18 UNC | 6.00 | 23.00 | 6.00 | 3 | 58.00 | C | 3410293 | | 1 | 1 |
| 3410278 TM-5/16-24UNF-17-TMUS31 | 5/16-24 UNF | 6.60 | 17.00 | 8.00 | 3 | 64.00 | C | 3410278 | | 1 | 1 |
| 3410283 TM-5/16-24UNF-24-TMUS31 | 5/16-24 UNF | 6.60 | 24.00 | 8.00 | 3 | 64.00 | C | 3410283 | | 1 | 1 |
| 3410291 TM-5/8-11UNC-34.5-TMUS31 | 5/8-11 UNC | 11.40 | 34.50 | 12.00 | 3 | 84.00 | C | 3410291 | | 1 | 1 |
| 3410310 TM-5/8-11UNC-50-TMUS31 | 5/8-11 UNC | 11.40 | 50.00 | 12.00 | 3 | 101.00 | C | 3410310 | | 1 | 1 |
| 3410295 TM-5/8-18UNF-35-TMUS41 | 5/8-18 UNF | 12.00 | 35.00 | 12.00 | 4 | 84.00 | C | 3410295 | | 1 | 1 |
| 3410299 TM-6-32UNC-10.5-C6-TMUS31 | 6-32 UNC | 2.55 | 10.50 | 6.00 | 3 | 58.00 | C | 3410299 | | 1 | 1 |
| 3410275 TM-6-32UNC-7.1-C6-TMUS31 | 6-32 UNC | 2.55 | 7.10 | 6.00 | 3 | 58.00 | C | 3410275 | | 1 | 1 |
| 3410289 TM-7/16-14UNC-25-TMUS31 | 7/16-14 UNC | 7.70 | 25.00 | 8.00 | 3 | 64.00 | C | 3410289 | | 1 | 1 |
| 3410309 TM-7/16-14UNC-35.2-TMUS31 | 7/16-14 UNC | 7.70 | 35.20 | 8.00 | 3 | 64.00 | C | 3410309 | | 1 | 1 |
| 3410294 TM-7/16-20UNF-25-TMUS31 | 7/16-20 UNF | 8.00 | 25.00 | 8.00 | 3 | 64.00 | C | 3410294 | | 1 | 1 |
| 3410306 TM-7/16-20UNF-34.6-TMUS31 | 7/16-20 UNF | 8.00 | 34.60 | 8.00 | 3 | 64.00 | C | 3410306 | | 1 | 1 |
| 3410281 TM-8-32UNC-12.5-C6-TMUS31 | 8-32 UNC | 3.20 | 12.50 | 6.00 | 3 | 58.00 | C | 3410281 | | 1 | 1 |
| 3410276 TM-8-32UNC-9.5-C6-TMUS31 | 8-32 UNC | 3.20 | 9.50 | 6.00 | 3 | 58.00 | C | 3410276 | | 1 | 1 |
| 3410274 TM-8-36UNF-9-C6-TMUS31 | 8-36 UNF | 3.30 | 9.00 | 6.00 | 3 | 58.00 | C | 3410274 | | 1 | 1 |
