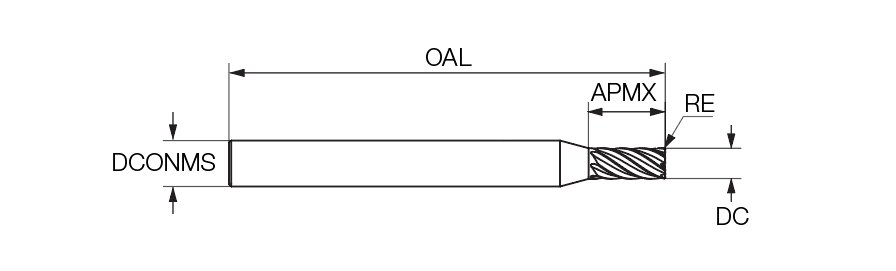

| Designation | DC | APMX | DCONMS | NOF | OAL | Shank  | GICAT | GIREM | giic | Grade & Vc |
| 3401919 ME-6-24-C6-FBL4001 | 6.00 | 24.00 | 6.00 | 4 | 65.00 | C | 3401919 | | 1 | 1 |
| 3402122 ME-6-24-W6-FBL4001 | 6.00 | 24.00 | 6.00 | 4 | 65.00 | W | 3402122 | | 1 | 1 |
| 3401920 ME-8-32-C8-FBL4001 | 8.00 | 32.00 | 8.00 | 4 | 79.00 | C | 3401920 | | 1 | 1 |
| 3402123 ME-8-32-W8-FBL4001 | 8.00 | 32.00 | 8.00 | 4 | 79.00 | W | 3402123 | | 1 | 1 |
| 3401921 ME-10-40-C10-FBL4001 | 10.00 | 40.00 | 10.00 | 4 | 100.00 | C | 3401921 | | 1 | 1 |
| 3402124 ME-10-40-W10-FBL4001 | 10.00 | 40.00 | 10.00 | 4 | 100.00 | W | 3402124 | | 1 | 1 |
| 3402030 ME-10-60-C10-FBL4001 | 10.00 | 60.00 | 10.00 | 4 | 112.00 | C | 3402030 | | 1 | 1 |
| 3402128 ME-10-60-W10-FBL4001 | 10.00 | 60.00 | 10.00 | 4 | 112.00 | W | 3402128 | | 1 | 1 |
| 3401922 ME-12-48-C12-FBL4001 | 12.00 | 48.00 | 12.00 | 4 | 100.00 | C | 3401922 | | 1 | 1 |
| 3402125 ME-12-48-W12-FBL4001 | 12.00 | 48.00 | 12.00 | 4 | 100.00 | W | 3402125 | | 1 | 1 |
| 3402031 ME-12-72-C12-FBL4001 | 12.00 | 72.00 | 12.00 | 4 | 150.00 | C | 3402031 | | 1 | 1 |
| 3401923 ME-14-50-C14-FBL4001 | 14.00 | 50.00 | 14.00 | 4 | 100.00 | C | 3401923 | | 1 | 1 |
| 3401924 ME-16-56-C16-FBL6001 | 16.00 | 56.00 | 16.00 | 6 | 115.00 | C | 3401924 | Cannot be used for plunging application | 1 | 1 |
| 3402126 ME-16-56-W16-FBL6001 | 16.00 | 56.00 | 16.00 | 6 | 115.00 | W | 3402126 | Cannot be used for plunging application | 1 | 1 |
| 3402032 ME-16-80-C16-FBL6001 | 16.00 | 80.00 | 16.00 | 6 | 150.00 | C | 3402032 | Cannot be used for plunging application | 1 | 1 |
| 3402129 ME-16-80-W16-FBL6001 | 16.00 | 80.00 | 16.00 | 6 | 150.00 | W | 3402129 | Cannot be used for plunging application | 1 | 1 |
| 3401925 ME-20-60-C20-FBL6001 | 20.00 | 60.00 | 20.00 | 6 | 125.00 | C | 3401925 | Cannot be used for plunging application | 1 | 1 |
| 3402127 ME-20-60-W20-FBL6001 | 20.00 | 60.00 | 20.00 | 6 | 125.00 | W | 3402127 | Cannot be used for plunging application | 1 | 1 |
| 3402033 ME-20-80-C20-FBL6001 | 20.00 | 80.00 | 20.00 | 6 | 150.00 | C | 3402033 | Cannot be used for plunging application | 1 | 1 |
