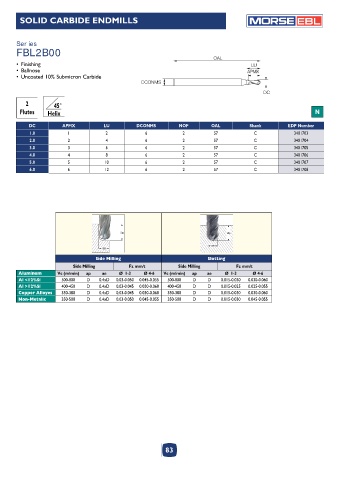

Page 83 - Morse_catalog_2022
P. 83
SOLID CARBIDE ENDMILLS EBL
Series
FBL2B00
OAL
• Finishing LU
• Ballnose APMX
• Uncoated 10% Submicron Carbide
DCONMS
DC
2 45°
Flutes Helix N
DC APMX LU DCONMS NOF OAL Shank EDP Number
1.0 1 2 6 2 57 C 3401703
2.0 2 4 6 2 57 C 3401704
3.0 3 6 6 2 57 C 3401705
4.0 4 8 6 2 57 C 3401706
5.0 5 10 6 2 57 C 3401707
6.0 6 12 6 2 57 C 3401708
ap ap
ae
ae
Side Milling Slotting
Side Milling Fz mm/t Side Milling Fz mm/t
Aluminum Vc (m/min) ap ae Ø 1-3 Ø 4-6 Vc (m/min) ap ae Ø 1-3 Ø 4-6
Al <12%Si 500-800 D 0.4xD 0.03-0.050 0.045-0.055 500-800 D D 0.015-0.030 0.030-0.060
Al >12%Si 400-450 D 0.4xD 0.03-0.045 0.030-0.060 400-450 D D 0.015-0.025 0.025-0.055
Copper Alloyes 350-380 D 0.4xD 0.03-0.045 0.030-0.060 350-380 D D 0.015-0.030 0.030-0.060
Non-Metalic 350-500 D 0.4xD 0.03-0.050 0.045-0.055 350-500 D D 0.015-0.030 0.045-0.055
