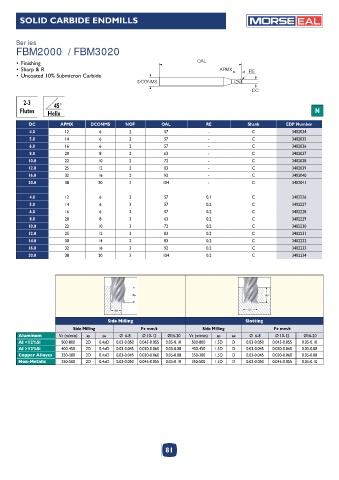

Page 81 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EAL

Series
FBM2000 / FBM3020

• Finishing OAL
• Sharp & R APMX RE
• Uncoated 10% Submicron Carbide
DCONMS
DC

2-3 45°
Flutes Helix N

DC APMX DCONMS NOF OAL RE Shank EDP Number
4.0 12 6 2 57 - C 3402034
5.0 14 6 2 57 - C 3402035
6.0 16 6 2 57 - C 3402036
8.0 20 8 2 63 - C 3402037
10.0 22 10 2 72 - C 3402038
12.0 25 12 2 83 - C 3402039
16.0 32 16 2 92 - C 3402040
20.0 38 20 2 104 - C 3402041

4.0 12 6 3 57 0.1 C 3402226
5.0 14 6 3 57 0.2 C 3402227
6.0 16 6 3 57 0.2 C 3402228
8.0 20 8 3 63 0.2 C 3402229
10.0 22 10 3 72 0.2 C 3402230
12.0 25 12 3 83 0.2 C 3402231
14.0 30 14 3 83 0.2 C 3402232
16.0 32 16 3 92 0.2 C 3402233
20.0 38 20 3 104 0.2 C 3402234

ap ap

ae ae
Side Milling Slotting
Side Milling Fz mm/t Side Milling Fz mm/t
Aluminum Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20 Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20
Al <12%Si 500-800 2D 0.4xD 0.03-0.050 0.045-0.055 0.05-0.10 500-800 1.5D D 0.03-0.050 0.045-0.055 0.05-0.10
Al >12%Si 400-450 2D 0.4xD 0.03-0.045 0.030-0.060 0.05-0.08 400-450 1.5D D 0.03-0.045 0.030-0.060 0.05-0.08
Copper Alloyes 350-380 2D 0.4xD 0.03-0.045 0.030-0.060 0.05-0.08 350-380 1.5D D 0.03-0.045 0.030-0.060 0.05-0.08
Non-Metalic 350-500 2D 0.4xD 0.03-0.050 0.045-0.055 0.05-0.10 350-500 1.5D D 0.03-0.050 0.045-0.055 0.05-0.10

81
