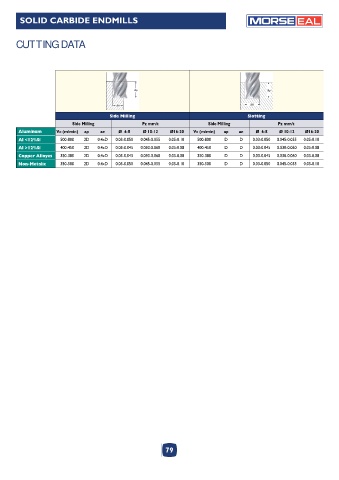

SOLID CARBIDE ENDMILLS EAL

CUTTING DATA

ap ap

ae ae
Side Milling Slotting
Side Milling Fz mm/t Side Milling Fz mm/t
Aluminum Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20 Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20
Al <12%Si 500-800 2D 0.4xD 0.03-0.050 0.045-0.055 0.05-0.10 500-800 D D 0.03-0.050 0.045-0.055 0.05-0.10
Al >12%Si 400-450 2D 0.4xD 0.03-0.045 0.030-0.060 0.05-0.08 400-450 D D 0.03-0.045 0.030-0.060 0.05-0.08
Copper Alloyes 350-380 2D 0.4xD 0.03-0.045 0.030-0.060 0.05-0.08 350-380 D D 0.03-0.045 0.030-0.060 0.05-0.08
Non-Metalic 350-500 2D 0.4xD 0.03-0.050 0.045-0.055 0.05-0.10 350-500 D D 0.03-0.050 0.045-0.055 0.05-0.10
