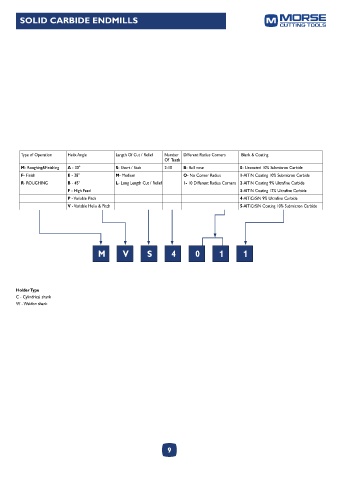

Page 9 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS

Type of Operation Helix Angle Langth Of Cut / Relief Number Different Radius Corners Blank & Coating
Of Teeth
M- Roughing&Finishing A - 30° S- Short / Stub 2-10 B- Ball nose 0- Uncoated 10% Submicron Carbide
F- Finish E - 38° M- Medium O- No Corner Radius 1-AlTiN Coating 10% Submicron Carbide
R- ROUGHING B - 45° L- Long Length Cut / Relief 1- 10 Different Radius Corners 2-AlTiN Coating 9% Ultrafine Carbide
F - High Feed 3-AlTiN Coating 12% Ultrafine Carbide
P - Variable Pitch 4-AlTiCrSiN 9% Ultrafine Carbide
V - Variable Helix & Pitch 5-AlTiCrSiN Coating 10% Submicron Carbide

M V S 4 0 1 1

Holder Type
C - Cylindrical shank
W - Weldon shank
