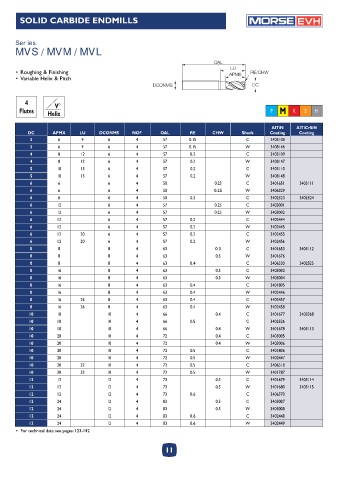

Page 11 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EVH

Series
MVS / MVM / MVL

OAL
LU
• Roughing & Finishing APMX RE/CHW
• Variable Helix & Pitch
DCONMS DC

4 V°
Flutes Helix P M K S H

AlTiN AlTiCrSiN
DC APMX LU DCONMS NOF OAL RE CHW Shank Coating Coating
3 6 9 6 4 57 0.15 C 3403108
3 6 9 6 4 57 0.15 W 3408146
4 8 12 6 4 57 0.2 C 3403109
4 8 12 6 4 57 0.2 W 3408147
5 10 15 6 4 57 0.2 C 3403110
5 10 15 6 4 57 0.2 W 3408148
6 6 6 4 50 0.25 C 3401651 3403111
6 6 6 4 50 0.25 W 3406329
6 6 6 4 50 0.2 C 3402523 3402524
6 12 6 4 57 0.25 C 3403001
6 12 6 4 57 0.25 W 3403002
6 12 6 4 57 0.2 C 3402444
6 12 6 4 57 0.2 W 3402445
6 12 20 6 4 57 0.2 C 3402455
6 12 20 6 4 57 0.2 W 3402456
8 8 8 4 63 0.3 C 3401653 3403112
8 8 8 4 63 0.3 W 3401676
8 8 8 4 63 0.4 C 3406330 3402525
8 16 8 4 63 0.3 C 3403003
8 16 8 4 63 0.3 W 3403004
8 16 8 4 63 0.4 C 3401805
8 16 8 4 63 0.4 W 3402446
8 16 26 8 4 63 0.4 C 3402457
8 16 26 8 4 63 0.4 W 3402458
10 10 10 4 66 0.4 C 3401677 3403368
10 10 10 4 66 0.5 C 3402526
10 10 10 4 66 0.4 W 3401678 3403113
10 20 10 4 72 0.4 C 3403005
10 20 10 4 72 0.4 W 3403006
10 20 10 4 72 0.5 C 3401806
10 20 10 4 72 0.5 W 3402447
10 20 32 10 4 72 0.5 C 3406518
10 20 32 10 4 72 0.5 W 3401787
12 12 12 4 73 0.5 C 3401679 3403114
12 12 12 4 73 0.5 W 3401680 3403115
12 12 12 4 73 0.6 C 3406370
12 24 12 4 83 0.5 C 3403007
12 24 12 4 83 0.5 W 3403008
12 24 12 4 83 0.6 C 3402448
12 24 12 4 83 0.6 W 3402449
• For technical data see pages: 123-142
