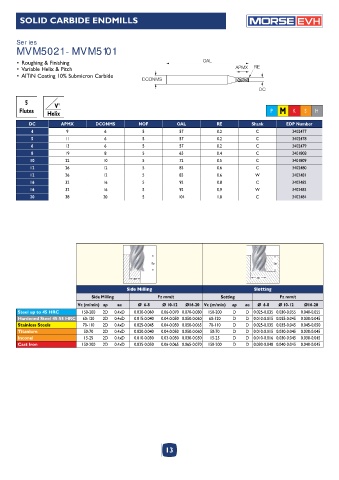

Page 13 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EVH

Series
MVM5021 - MVM5101

• Roughing & Finishing OAL
• Variable Helix & Pitch APMX RE
• AlTiN Coating 10% Submicron Carbide
DCONMS
DC

5 V°
Flutes Helix P M K S H

DC APMX DCONMS NOF OAL RE Shank EDP Number
4 9 6 5 57 0.2 C 3402477
5 11 6 5 57 0.2 C 3402478
6 13 6 5 57 0.2 C 3402479
8 19 8 5 63 0.4 C 3401808
10 22 10 5 72 0.5 C 3401809
12 26 12 5 83 0.6 C 3402480
12 26 12 5 83 0.6 W 3402481
16 32 16 5 92 0.8 C 3402482
16 32 16 5 92 0.9 W 3402483
20 38 20 5 104 1.0 C 3402484

ap ap

ae ae
Side Milling Slotting
Side Milling Fz mm/t Sotting Fz mm/t
Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20 Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20
Steel up to 45 HRC 150-200 2D 0.4xD 0.030-0.060 0.06-0.070 0.070-0.080 150-200 D D 0.025-0.035 0.030-0.055 0.040-0.055
Hardened Steel 45-55 HRC 60-120 2D 0.4xD 0.015-0.040 0.04-0.050 0.050-0.060 60-120 D D 0.010-0.015 0.025-0.045 0.030-0.045
Stainless Steels 70-110 2D 0.4xD 0.025-0.045 0.04-0.050 0.050-0.065 70-110 D D 0.025-0.035 0.035-0.045 0.045-0.050
Titanium 50-70 2D 0.4xD 0.020-0.040 0.04-0.050 0.050-0.060 50-70 D D 0.010-0.015 0.030-0.045 0.030-0.045
Inconel 15-25 2D 0.4xD 0.010-0.030 0.03-0.050 0.030-0.050 15-25 D D 0.010-0.016 0.030-0.045 0.030-0.045
Cast Iron 150-200 2D 0.4xD 0.035-0.050 0.06-0.065 0.065-0.070 150-200 D D 0.030-0.040 0.040-0.045 0.040-0.045
