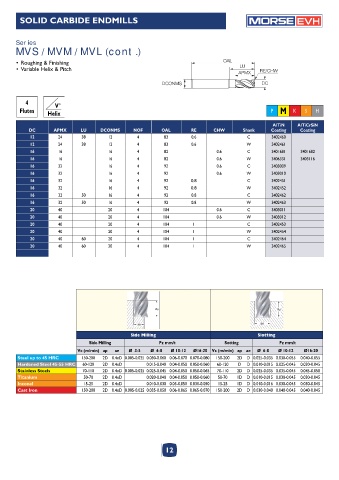

Page 12 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EVH

Series
MVS / MVM / MVL (cont.)

• Roughing & Finishing OAL
• Variable Helix & Pitch LU
APMX RE/CHW

DCONMS DC

4 V°
Flutes Helix P M K S H

AlTiN AlTiCrSiN
DC APMX LU DCONMS NOF OAL RE CHW Shank Coating Coating
12 24 38 12 4 83 0.6 C 3402460
12 24 38 12 4 83 0.6 W 3402461
16 16 16 4 82 0.6 C 3401681 3401682
16 16 16 4 82 0.6 W 3406331 3403116
16 32 16 4 92 0.6 C 3403009
16 32 16 4 92 0.6 W 3403010
16 32 16 4 92 0.8 C 3402451
16 32 16 4 92 0.8 W 3402452
16 32 50 16 4 92 0.8 C 3402462
16 32 50 16 4 92 0.8 W 3402463
20 40 20 4 104 0.6 C 3403011
20 40 20 4 104 0.6 W 3403012
20 40 20 4 104 1 C 3402453
20 40 20 4 104 1 W 3402454
20 40 60 20 4 104 1 C 3402464
20 40 60 20 4 104 1 W 3402465

ap ap

ae ae
Side Milling Slotting
Side Milling Fz mm/t Sotting Fz mm/t
Vc (m/min) ap ae Ø 3-5 Ø 6-8 Ø 10-12 Ø16-20 Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20
Steel up to 45 HRC 150-200 2D 0.4xD 0.005-0.025 0.030-0.060 0.06-0.070 0.070-0.080 150-200 2D D 0.025-0.035 0.030-0.055 0.040-0.055
Hardened Steel 45-55 HRC 60-120 2D 0.4xD 0.015-0.040 0.04-0.050 0.050-0.060 60-120 D D 0.010-0.015 0.025-0.045 0.030-0.045
Stainless Steels 70-110 2D 0.4xD 0.005-0.025 0.025-0.045 0.04-0.050 0.050-0.065 70-110 2D D 0.025-0.035 0.035-0.045 0.045-0.050
Titanium 50-70 2D 0.4xD 0.020-0.040 0.04-0.050 0.050-0.060 50-70 1D D 0.010-0.015 0.030-0.045 0.030-0.045
Inconel 15-25 2D 0.4xD 0.010-0.030 0.03-0.050 0.030-0.050 15-25 1D D 0.010-0.016 0.030-0.045 0.030-0.045
Cast Iron 150-200 2D 0.4xD 0.005-0.025 0.035-0.050 0.06-0.065 0.065-0.070 150-200 2D D 0.030-0.040 0.040-0.045 0.040-0.045

12
