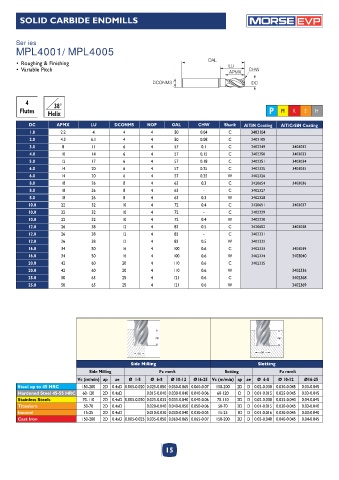

Page 15 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EVP

Series
MPL4001 / MPL4005
OAL
• Roughing & Finishing
• Variable Pitch LU CHW
APMX

DCONMS DC

4 38°
Flutes Helix P M K S H

DC APMX LU DCONMS NOF OAL CHW Shank AlTiN Coating AlTiCrSiN Coating
1.0 2.2 4 4 4 50 0.04 C 3403104
2.0 4.3 6.1 4 4 50 0.08 C 3403105
3.0 8 11 6 4 57 0.1 C 3402349 3403032
4.0 10 14 6 4 57 0.15 C 3402350 3403033
5.0 12 17 6 4 57 0.18 C 3402351 3403034
6.0 14 20 6 4 57 0.25 C 3402325 3403035
6.0 14 20 6 4 57 0.25 W 3402326
8.0 18 26 8 4 63 0.3 C 3420654 3403036
8.0 18 26 8 4 63 - C 3402327
8.0 18 26 8 4 63 0.3 W 3402328
10.0 22 32 10 4 72 0.4 C 3420651 3403037
10.0 22 32 10 4 72 - C 3402329
10.0 22 32 10 4 72 0.4 W 3402330
12.0 26 38 12 4 83 0.5 C 3420652 3403038
12.0 26 38 12 4 83 - C 3402331
12.0 26 38 12 4 83 0.5 W 3402332
16.0 34 50 16 4 100 0.6 C 3402333 3403039
16.0 34 50 16 4 100 0.6 W 3402334 3403040
20.0 42 60 20 4 110 0.6 C 3402335
20.0 42 60 20 4 110 0.6 W 3402336
25.0 50 65 25 4 121 0.6 C 3402368
25.0 50 65 25 4 121 0.6 W 3402369

ap ap

ae ae
Side Milling Slotting
Side Milling Fz mm/t Sotting Fz mm/t
Vc (m/min) ap ae Ø 1-5 Ø 6-8 Ø 10-12 Ø16-25 Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-25
Steel up to 45 HRC 150-200 2D 0.4xD 0.005-0.020 0.025-0.050 0.050-0.065 0.060-0.07 150-200 2D D 0.02-0.030 0.030-0.045 0.03-0.045
Hardened Steel 45-55 HRC 60-120 2D 0.4xD 0.015-0.040 0.030-0.040 0.040-0.06 60-120 D D 0.01-0.015 0.025-0.045 0.03-0.045
Stainless Steels 70-110 2D 0.4xD 0.005-0.020 0.025-0.035 0.035-0.040 0.040-0.06 70-110 2D D 0.02-0.030 0.035-0.040 0.04-0.045
Titanium 50-70 2D 0.4xD 0.020-0.040 0.040-0.050 0.050-0.06 50-70 2D D 0.01-0.015 0.030-0.045 0.03-0.040
Inconel 15-25 2D 0.4xD 0.010-0.030 0.030-0.040 0.030-0.05 15-25 1D D 0.01-0.016 0.030-0.045 0.03-0.040
Cast Iron 150-200 2D 0.4xD 0.005-0.025 0.035-0.050 0.060-0.065 0.065-0.07 150-200 2D D 0.03-0.040 0.040-0.045 0.04-0.045
