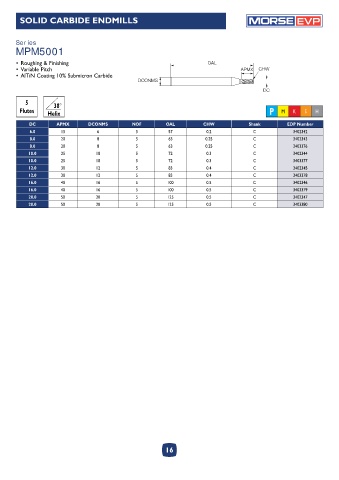

SOLID CARBIDE ENDMILLS EVP
Series
MPM5001
• Roughing & Finishing OAL
• Variable Pitch APMX CHW
• AlTiN Coating 10% Submicron Carbide
DCONMS
DC
5 38°
Flutes Helix P M K S H
DC APMX DCONMS NOF OAL CHW Shank EDP Number
6.0 15 6 5 57 0.2 C 3402342
8.0 20 8 5 63 0.25 C 3402343
8.0 20 8 5 63 0.25 C 3403376
10.0 25 10 5 72 0.3 C 3402344
10.0 25 10 5 72 0.3 C 3403377
12.0 30 12 5 83 0.4 C 3402345
12.0 30 12 5 83 0.4 C 3403378
16.0 40 16 5 100 0.5 C 3402346
16.0 40 16 5 100 0.5 C 3403379
20.0 50 20 5 125 0.5 C 3402347
20.0 50 20 5 125 0.5 C 3403380
