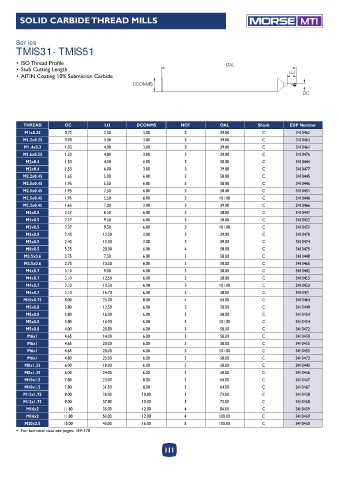

SOLID CARBIDE THREAD MILLS MTI

Series
TMIS31 - TMIS51

• ISO Thread Profile OAL
• Stub Cutting Length LU
• AlTiN Coating 10% Submicron Carbide
DCONMS
DC

THREAD DC LU DCONMS NOF OAL Shank EDP Number
M1x0.25 0.72 2.50 3.00 3 39.00 C 3410462
M1.2x0.25 0.90 3.00 3.00 3 39.00 C 3410463
M1.4x0.3 1.05 4.00 3.00 3 39.00 C 3410461
M1.6x0.35 1.20 4.80 3.00 3 39.00 C 3410476
M2x0.4 1.53 4.50 6.00 3 58.00 C 3410444
M2x0.4 1.53 6.00 3.00 3 39.00 C 3410477
M2.2x0.45 1.65 5.00 6.00 3 58.00 C 3410445
M2.5x0.45 1.95 5.50 6.00 3 58.00 C 3410446
M2.5x0.45 1.95 7.50 6.00 3 58.00 C 3410451
M2.5x0.45 1.95 5.50 6.00 3 101.00 C 3410446
M2.2x0.45 1.65 7.00 3.00 3 39.00 C 3410466
M3x0.5 2.37 6.50 6.00 3 58.00 C 3410447
M3x0.5 2.37 9.50 6.00 3 58.00 C 3410452
M3x0.5 2.37 9.50 6.00 3 101.00 C 3410452
M3x0.5 2.40 12.50 3.00 3 39.00 C 3410470
M3x0.5 2.40 15.50 3.00 3 39.00 C 3410474
M6x0.5 5.35 20.00 6.00 4 58.00 C 3410475
M3.5x0.6 2.75 7.50 6.00 3 58.00 C 3410448
M3.5x0.6 2.75 10.50 6.00 3 58.00 C 3410465
M4x0.7 3.10 9.00 6.00 3 58.00 C 3410442
M4x0.7 3.10 12.50 6.00 3 58.00 C 3410453
M4x0.7 3.10 12.50 6.00 3 101.00 C 3410453
M4x0.7 3.10 16.70 6.00 3 58.00 C 3410471
M10x0.75 8.00 25.00 8.00 4 64.00 C 3410464
M5x0.8 3.80 12.50 6.00 3 58.00 C 3410449
M5x0.8 3.80 16.00 6.00 3 58.00 C 3410454
M5x0.8 3.80 16.00 6.00 3 101.00 C 3410454
M5x0.8 4.00 20.80 6.00 3 58.00 C 3410472
M6x1 4.65 14.00 6.00 3 58.00 C 3410450
M6x1 4.65 20.00 6.00 3 58.00 C 3410455
M6x1 4.65 20.00 6.00 3 101.00 C 3410455
M6x1 4.80 25.00 6.00 3 58.00 C 3410473
M8x1.25 6.00 18.00 6.00 3 58.00 C 3410443
M8x1.25 6.00 24.00 6.00 3 58.00 C 3410456
M10x1.5 7.80 23.00 8.00 3 64.00 C 3410457
M10x1.5 7.80 31.50 8.00 3 64.00 C 3410467
M12x1.75 9.00 26.00 10.00 3 73.00 C 3410458
M12x1.75 9.00 37.80 10.00 3 73.00 C 3410468
M16x2 11.80 35.00 12.00 4 84.00 C 3410459
M16x2 11.80 50.00 12.00 4 100.00 C 3410469
M20x2.5 15.00 43.00 16.00 5 100.00 C 3410460
• For technical data see pages: 169-170
