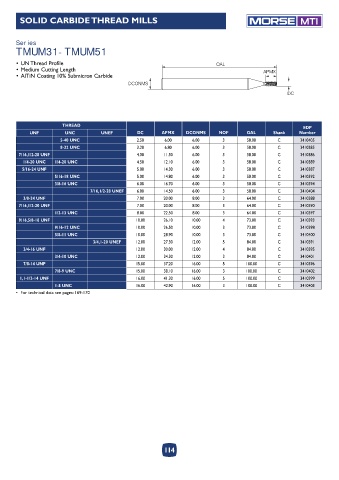

Page 114 - Morse_catalog_2022

SOLID CARBIDE THREAD MILLS MTI

Series
TMUM31 - TMUM51

• UN Thread Profile OAL
• Medium Cutting Length APMX
• AlTiN Coating 10% Submicron Carbide
DCONMS
DC

THREAD
EDP
UNF UNC UNEF DC APMX DCONMS NOF OAL Shank Number
5-40 UNC 2.50 6.00 6.00 3 58.00 C 3410405
8-32 UNC 3.20 6.80 6.00 3 58.00 C 3410385
7/16,1/2-28 UNF 4.00 11.30 6.00 3 58.00 C 3410386
1/4-20 UNC 1/4-20 UNC 4.50 12.10 6.00 3 58.00 C 3410389
5/16-24 UNF 5.00 14.30 6.00 3 58.00 C 3410387
5/16-18 UNC 5.00 14.80 6.00 3 58.00 C 3410392
3/8-16 UNC 6.00 16.70 6.00 3 58.00 C 3410394
7/16,1/2-28 UNEF 6.00 14.50 6.00 3 58.00 C 3410404
3/8-24 UNF 7.00 20.00 8.00 3 64.00 C 3410388
7/16,1/2-20 UNF 7.00 20.00 8.00 3 64.00 C 3410390
1/2-13 UNC 8.00 22.50 8.00 3 64.00 C 3410397
9/16,5/8-18 UNF 10.00 26.10 10.00 4 73.00 C 3410393
9/16-12 UNC 10.00 26.50 10.00 3 73.00 C 3410398
5/8-11 UNC 10.00 28.90 10.00 3 73.00 C 3410400
3/4,1-20 UNEF 12.00 27.30 12.00 5 84.00 C 3410391
3/4-16 UNF 12.00 30.00 12.00 4 84.00 C 3410395
3/4-10 UNC 12.00 34.30 12.00 3 84.00 C 3410401
7/8-14 UNF 15.00 37.20 16.00 5 100.00 C 3410396
7/8-9 UNC 15.00 38.10 16.00 3 100.00 C 3410402
1,1-1/2-14 UNF 16.00 41.30 16.00 5 100.00 C 3410399
1-8 UNC 16.00 42.90 16.00 3 100.00 C 3410403
• For technical data see pages: 169-170
