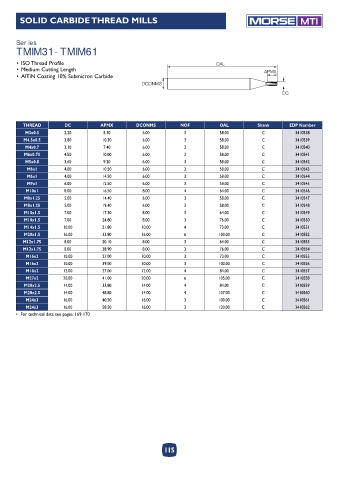

Page 115 - Morse_catalog_2022

SOLID CARBIDE THREAD MILLS MTI

Series
TMIM31 - TMIM61

• ISO Thread Profile OAL
• Medium Cutting Length APMX
• AlTiN Coating 10% Submicron Carbide
DCONMS
DC

THREAD DC APMX DCONMS NOF OAL Shank EDP Number
M3x0.5 2.20 5.30 6.00 3 58.00 C 3410538
M4.5x0.5 3.80 10.30 6.00 3 58.00 C 3410539
M4x0.7 3.10 7.40 6.00 3 58.00 C 3410540
M6x0.75 4.50 10.00 6.00 3 58.00 C 3410541
M5x0.8 3.60 9.20 6.00 3 58.00 C 3410542
M6x1 4.00 10.50 6.00 3 58.00 C 3410543
M6x1 4.00 14.50 6.00 3 58.00 C 3410544
M9x1 6.00 12.50 6.00 3 58.00 C 3410545
M10x1 8.00 16.50 8.00 4 64.00 C 3410546
M8x1.25 5.00 14.40 6.00 3 58.00 C 3410547
M8x1.25 5.00 19.40 6.00 3 58.00 C 3410548
M10x1.5 7.00 17.30 8.00 3 64.00 C 3410549
M10x1.5 7.00 24.80 8.00 3 76.00 C 3410550
M14x1.5 10.00 21.80 10.00 4 73.00 C 3410551
M20x1.5 16.00 33.80 16.00 6 100.00 C 3410552
M12x1.75 8.00 20.10 8.00 3 64.00 C 3410553
M12x1.75 8.00 28.90 8.00 3 76.00 C 3410554
M16x2 10.00 27.00 10.00 3 73.00 C 3410555
M16x2 10.00 39.00 10.00 3 100.00 C 3410556
M18x2 12.00 27.00 12.00 4 84.00 C 3410557
M27x2 20.00 41.00 20.00 6 105.00 C 3410558
M20x2.5 14.00 33.80 14.00 4 84.00 C 3410559
M20x2.5 14.00 48.80 14.00 4 107.00 C 3410560
M24x3 16.00 40.50 16.00 3 100.00 C 3410561
M24x3 16.00 58.50 16.00 3 120.00 C 3410562
• For technical data see pages: 169-170
