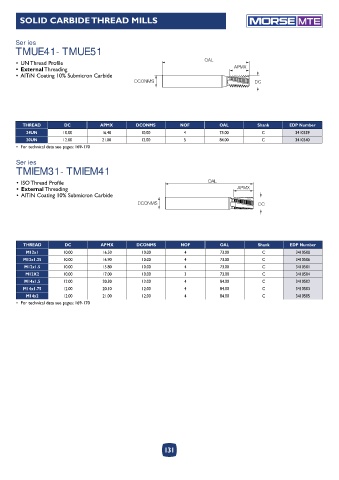

SOLID CARBIDE THREAD MILLS MTE

Series
TMUE41 - TMUE51
OAL
• UN Thread Profile
• External Threading APMX
• AlTiN Coating 10% Submicron Carbide
DCONMS DC

THREAD DC APMX DCONMS NOF OAL Shank EDP Number
24UN 10.00 16.40 10.00 4 73.00 C 3410339
20UN 12.00 21.00 12.00 5 84.00 C 3410340
• For technical data see pages: 169-170

Series
TMIEM31 - TMIEM41

• ISO Thread Profile OAL
• External Threading APMX
• AlTiN Coating 10% Submicron Carbide
DCONMS DC

THREAD DC APMX DCONMS NOF OAL Shank EDP Number
M12x1 10.00 16.50 10.00 4 73.00 C 3410500
M12x1.25 10.00 16.90 10.00 4 73.00 C 3410506
M12x1.5 10.00 15.80 10.00 4 73.00 C 3410501
M12X2 10.00 17.00 10.00 3 73.00 C 3410504
M14x1.5 12.00 20.30 12.00 4 84.00 C 3410502
M14x1.75 12.00 20.10 12.00 4 84.00 C 3410503
M14x2 12.00 21.00 12.00 4 84.00 C 3410505
• For technical data see pages: 169-170

131
