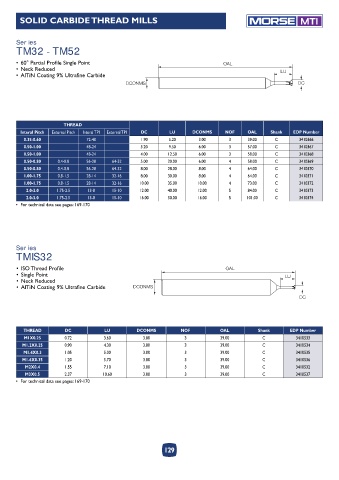

Page 129 - Morse_catalog_2022

SOLID CARBIDE THREAD MILLS MTI

Series
TM32 - TM52

• 60° Partial Profile Single Point OAL
• Neck Reduced LU
• AlTiN Coating 9% Ultrafine Carbide
DCONMS DC

THREAD
Interal Pitch External Pitch Interal TPI External TPI DC LU DCONMS NOF OAL Shank EDP Number
0.35-0.60 72-40 1.90 5.20 3.00 3 39.00 C 3410366
0.50-1.00 48-24 3.20 9.50 6.00 3 57.00 C 3410367
0.50-1.00 48-24 4.00 12.50 6.00 3 58.00 C 3410368
0.50-0.80 0.4-0.8 56-28 64-32 5.00 20.00 6.00 4 58.00 C 3410369
0.50-0.80 0.4-0.8 56-28 64-32 8.00 28.00 8.00 4 64.00 C 3410370
1.00-1.75 0.8-1.5 28-14 32-16 8.00 30.00 8.00 4 64.00 C 3410371
1.00-1.75 0.8-1.5 28-14 32-16 10.00 35.00 10.00 4 73.00 C 3410372
2.0-3.0 1.75-2.5 13-8 15-10 12.00 40.00 12.00 5 84.00 C 3410373
2.0-3.0 1.75-2.5 13-8 15-10 16.00 50.00 16.00 5 101.00 C 3410374
• For technical data see pages: 169-170

Series
TMIS32

• ISO Thread Profile OAL
• Single Point LU
• Neck Reduced
• AlTiN Coating 9% Ultrafine Carbide DCONMS
DC

THREAD DC LU DCONMS NOF OAL Shank EDP Number
M1X0.25 0.72 3.60 3.00 3 39.00 C 3410533
M1.2X0.25 0.90 4.30 3.00 3 39.00 C 3410534
M1.4X0.3 1.05 5.00 3.00 3 39.00 C 3410535
M1.6X0.35 1.20 5.70 3.00 3 39.00 C 3410536
M2X0.4 1.55 7.10 3.00 3 39.00 C 3410532
M3X0.5 2.37 10.60 3.00 3 39.00 C 3410537
• For technical data see pages: 169-170
