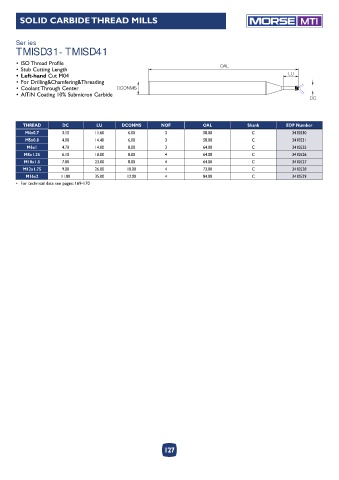

P. 127
SOLID CARBIDE THREAD MILLS MTI
Series
TMISD31 - TMISD41
• ISO Thread Profile
• Stub Cutting Length OAL
• Left-hand Cut M04 LU
• For Drilling&Chamfering&Threading
• Coolant Through Center DCONMS
• AlTiN Coating 10% Submicron Carbide
DC
THREAD DC LU DCONMS NOF OAL Shank EDP Number
M4x0.7 3.15 11.60 6.00 3 58.00 C 3410530
M5x0.8 4.00 14.40 6.00 3 58.00 C 3410531
M6x1 4.70 14.00 8.00 3 64.00 C 3410525
M8x1.25 6.10 18.00 8.00 4 64.00 C 3410526
M10x1.5 7.80 23.00 8.00 4 64.00 C 3410527
M12x1.75 9.00 26.00 10.00 4 73.00 C 3410528
M16x2 11.80 35.00 12.00 4 84.00 C 3410529
• For technical data see pages: 169-170
127
