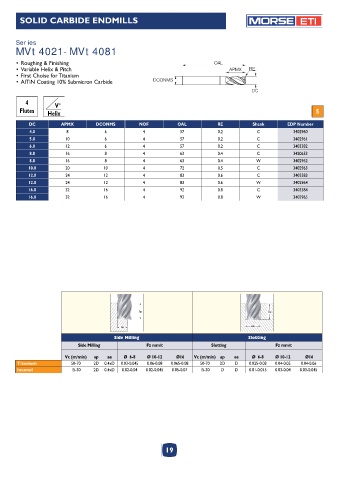

Page 19 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS ETI

Series
MVt4021 - MVt4081

• Roughing & Finishing OAL
• Variable Helix & Pitch APMX RE
• First Choise for Titanium
• AlTiN Coating 10% Submicron Carbide DCONMS
DC

4 V°
Flutes Helix S

DC APMX DCONMS NOF OAL RE Shank EDP Number
4.0 8 6 4 57 0.2 C 3402960
5.0 10 6 4 57 0.2 C 3402961
6.0 12 6 4 57 0.2 C 3403382
8.0 16 8 4 63 0.4 C 3420653
8.0 16 8 4 63 0.4 W 3402962
10.0 20 10 4 72 0.5 C 3402963
12.0 24 12 4 83 0.6 C 3403383
12.0 24 12 4 83 0.6 W 3402964
16.0 32 16 4 92 0.8 C 3403384
16.0 32 16 4 92 0.8 W 3402965

ap ap

ae ae
Side Milling Slotting
Side Milling Fz mm/t Slotting Fz mm/t

Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16 Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16
Titanium 50-70 2D 0.4xD 0.03-0.045 0.06-0.08 0.065-0.08 50-70 2D D 0.025-0.03 0.04-0.05 0.04-0.06
Inconel 15-30 2D 0.4xD 0.02-0.04 0.02-0.045 0.05-0.07 15-30 D D 0.01-0.015 0.03-0.04 0.03-0.045

19
