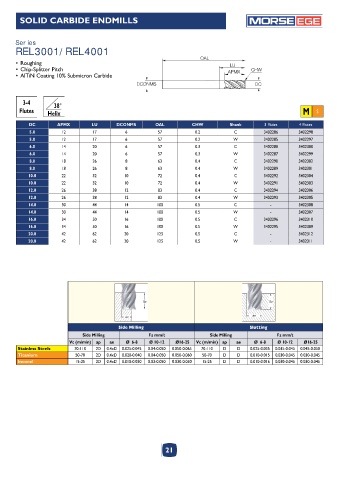

Page 21 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EGE

Series
REL3001 / REL4001
OAL
• Roughing LU
• Chip-Splitter Pitch APMX CHW
• AlTiN Coating 10% Submicron Carbide
DCONMS DC

3-4 38°
Flutes Helix M S

DC APMX LU DCONMS OAL CHW Shank 3 Flutes 4 Flutes
5.0 12 17 6 57 0.2 C 3402286 3402298
5.0 12 17 6 57 0.2 W 3402285 3402297
6.0 14 20 6 57 0.3 C 3402288 3402300
6.0 14 20 6 57 0.3 W 3402287 3402299
8.0 18 26 8 63 0.4 C 3402290 3402302
8.0 18 26 8 63 0.4 W 3402289 3402301
10.0 22 32 10 72 0.4 C 3402292 3402304
10.0 22 32 10 72 0.4 W 3402291 3402303
12.0 26 38 12 83 0.4 C 3402294 3402306
12.0 26 38 12 83 0.4 W 3402293 3402305
14.0 30 44 14 100 0.5 C - 3402308
14.0 30 44 14 100 0.5 W - 3402307
16.0 34 50 16 100 0.5 C 3402296 3402310
16.0 34 50 16 100 0.5 W 3402295 3402309
20.0 42 62 20 125 0.5 C - 3402312
20.0 42 62 20 125 0.5 W - 3402311

ap ap

ae ae
Side Milling Slotting
Side Milling Fz mm/t Side Milling Fz mm/t
Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-25 Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-25
Stainless Steels 70-110 2D 0.4xD 0.025-0.045 0.04-0.050 0.050-0.065 70-110 D D 0.025-0.035 0.035-0.045 0.045-0.050
Titanium 50-70 2D 0.4xD 0.020-0.040 0.04-0.050 0.050-0.060 50-70 D D 0.010-0.015 0.030-0.045 0.030-0.045
Inconel 15-25 2D 0.4xD 0.010-0.030 0.03-0.050 0.030-0.050 15-25 D D 0.010-0.016 0.030-0.045 0.030-0.045
