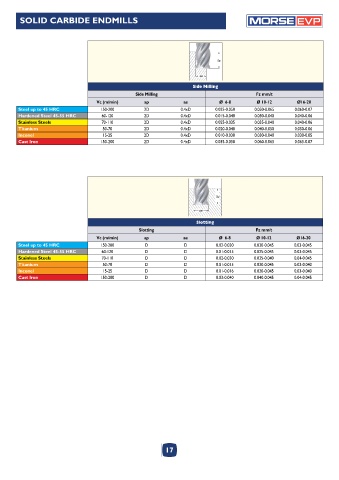

SOLID CARBIDE ENDMILLS EVP

ap

ae
Side Milling
Side Milling Fz mm/t
Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20
Steel up to 45 HRC 150-200 2D 0.4xD 0.025-0.050 0.050-0.065 0.060-0.07
Hardened Steel 45-55 HRC 60-120 2D 0.4xD 0.015-0.040 0.030-0.040 0.040-0.06
Stainless Steels 70-110 2D 0.4xD 0.025-0.035 0.035-0.040 0.040-0.06
Titanium 50-70 2D 0.4xD 0.020-0.040 0.040-0.050 0.050-0.06
Inconel 15-25 2D 0.4xD 0.010-0.030 0.030-0.040 0.030-0.05
Cast Iron 150-200 2D 0.4xD 0.035-0.050 0.060-0.065 0.065-0.07

ap

ae
Slotting
Slotting Fz mm/t
Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20
Steel up to 45 HRC 150-200 D D 0.02-0.030 0.030-0.045 0.03-0.045
Hardened Steel 45-55 HRC 60-120 D D 0.01-0.015 0.025-0.045 0.03-0.045
Stainless Steels 70-110 D D 0.02-0.030 0.035-0.040 0.04-0.045
Titanium 50-70 D D 0.01-0.015 0.030-0.045 0.03-0.040
Inconel 15-25 D D 0.01-0.016 0.030-0.045 0.03-0.040
Cast Iron 150-200 D D 0.03-0.040 0.040-0.045 0.04-0.045
