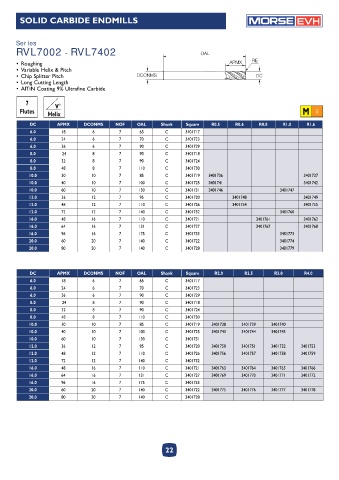

Page 22 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EVH

Series
RVL7002 - RVL7402 OAL

• Roughing APMX RE
• Variable Helix & Pitch
• Chip Splitter Pitch DCONMS DC
• Long Cutting Length
• AlTiN Coating 9% Ultrafine Carbide

7 V°
Flutes Helix M S

DC APMX DCONMS NOF OAL Shank Square R0.5 R0.6 R0.8 R1.0 R1.6
6.0 18 6 7 65 C 3401717
6.0 24 6 7 70 C 3401723
6.0 36 6 7 90 C 3401729
8.0 24 8 7 90 C 3401718
8.0 32 8 7 90 C 3401724
8.0 48 8 7 110 C 3401730
10.0 30 10 7 85 C 3401719 3401736 3401737
10.0 40 10 7 100 C 3401725 3401741 3401742
10.0 60 10 7 130 C 3401731 3401746 3401747
12.0 36 12 7 95 C 3401720 3401748 3401749
12.0 48 12 7 110 C 3401726 3401754 3401755
12.0 72 12 7 140 C 3401732 3401760
16.0 48 16 7 110 C 3401721 3401761 3401762
16.0 64 16 7 131 C 3401727 3401767 3401768
16.0 96 16 7 175 C 3401733 3401773
20.0 60 20 7 140 C 3401722 3401774
20.0 80 20 7 140 C 3401728 3401779

DC APMX DCONMS NOF OAL Shank Square R2.0 R2.5 R3.0 R4.0
6.0 18 6 7 65 C 3401717
6.0 24 6 7 70 C 3401723
6.0 36 6 7 90 C 3401729
8.0 24 8 7 90 C 3401718
8.0 32 8 7 90 C 3401724
8.0 48 8 7 110 C 3401730
10.0 30 10 7 85 C 3401719 3401738 3401739 3401740
10.0 40 10 7 100 C 3401725 3401743 3401744 3401745
10.0 60 10 7 130 C 3401731
12.0 36 12 7 95 C 3401720 3401750 3401751 3401752 3401753
12.0 48 12 7 110 C 3401726 3401756 3401757 3401758 3401759
12.0 72 12 7 140 C 3401732
16.0 48 16 7 110 C 3401721 3401763 3401764 3401765 3401766
16.0 64 16 7 131 C 3401727 3401769 3401770 3401771 3401772
16.0 96 16 7 175 C 3401733
20.0 60 20 7 140 C 3401722 3401775 3401776 3401777 3401778
20.0 80 20 7 140 C 3401728
