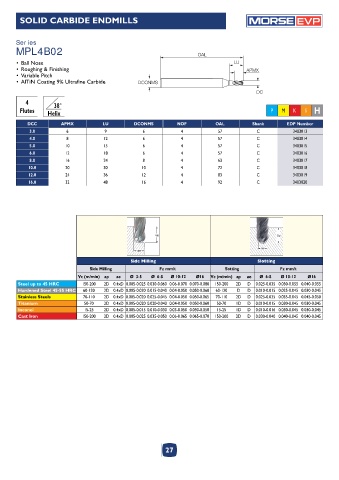

Page 27 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EVP

Series
MPL4B02 OAL

• Ball Nose LU
• Roughing & Finishing APMX
• Variable Pitch
• AlTiN Coating 9% Ultrafine Carbide DCONMS

DC
4 38°
Flutes Helix P M K S H

DCC APMX LU DCONMS NOF OAL Shank EDP Number
3.0 6 9 6 4 57 C 3403013
4.0 8 12 6 4 57 C 3403014
5.0 10 15 6 4 57 C 3403015
6.0 12 18 6 4 57 C 3403016
8.0 16 24 8 4 63 C 3403017
10.0 20 30 10 4 72 C 3403018
12.0 24 36 12 4 83 C 3403019
16.0 32 48 16 4 92 C 3403020

ap ap

ae
ae
Side Milling Slotting
Side Milling Fz mm/t Sotting Fz mm/t
Vc (m/min) ap ae Ø 3-5 Ø 6-8 Ø 10-12 Ø16 Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16
Steel up to 45 HRC 150-200 2D 0.4xD 0.005-0.025 0.030-0.060 0.06-0.070 0.070-0.080 150-200 2D D 0.025-0.035 0.030-0.055 0.040-0.055
Hardened Steel 45-55 HRC 60-120 2D 0.4xD 0.005-0.020 0.015-0.040 0.04-0.050 0.050-0.060 60-120 D D 0.010-0.015 0.025-0.045 0.030-0.045
Stainless Steels 70-110 2D 0.4xD 0.005-0.020 0.025-0.045 0.04-0.050 0.050-0.065 70-110 2D D 0.025-0.035 0.035-0.045 0.045-0.050
Titanium 50-70 2D 0.4xD 0.005-0.020 0.020-0.040 0.04-0.050 0.050-0.060 50-70 1D D 0.010-0.015 0.030-0.045 0.030-0.045
Inconel 15-25 2D 0.4xD 0.005-0.015 0.010-0.030 0.03-0.050 0.030-0.050 15-25 1D D 0.010-0.016 0.030-0.045 0.030-0.045
Cast Iron 150-200 2D 0.4xD 0.005-0.025 0.035-0.050 0.06-0.065 0.065-0.070 150-200 2D D 0.030-0.040 0.040-0.045 0.040-0.045

27
