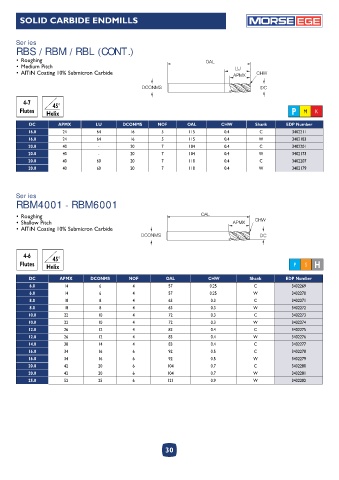

Page 30 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EGE

Series
RBS / RBM / RBL (CONT.)
• Roughing OAL
• Medium Pitch LU
• AlTiN Coating 10% Submicron Carbide APMX CHW

DCONMS DC

4-7 45°
Flutes Helix P M K

DC APMX LU DCONMS NOF OAL CHW Shank EDP Number
16.0 24 64 16 5 115 0.4 C 3402211
16.0 24 64 16 5 115 0.4 W 3402183
20.0 40 - 20 7 104 0.4 C 3402201
20.0 40 - 20 7 104 0.4 W 3402173
20.0 40 60 20 7 110 0.4 C 3402207
20.0 40 60 20 7 110 0.4 W 3402179

Series
RBM4001 - RBM6001

• Roughing OAL
• Shallow Pitch APMX CHW
• AlTiN Coating 10% Submicron Carbide
DCONMS DC

4-6 45°
Flutes Helix P S H

DC APMX DCONMS NOF OAL CHW Shank EDP Number
6.0 14 6 4 57 0.25 C 3402269
6.0 14 6 4 57 0.25 W 3402270
8.0 18 8 4 63 0.3 C 3402271
8.0 18 8 4 63 0.3 W 3402272
10.0 22 10 4 72 0.3 C 3402273
10.0 22 10 4 72 0.3 W 3402274
12.0 26 12 4 83 0.4 C 3402275
12.0 26 12 4 83 0.4 W 3402276
14.0 30 14 4 83 0.4 C 3402277
16.0 34 16 6 92 0.5 C 3402278
16.0 34 16 6 92 0.5 W 3402279
20.0 42 20 6 104 0.7 C 3402280
20.0 42 20 6 104 0.7 W 3402281
25.0 52 25 6 121 0.9 W 3402282
