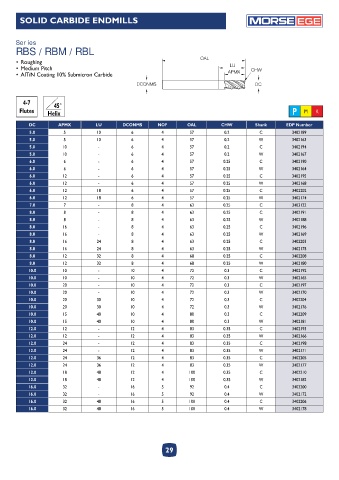

Page 29 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EGE

Series
RBS / RBM / RBL
OAL
• Roughing
• Medium Pitch LU CHW
• AlTiN Coating 10% Submicron Carbide APMX
DCONMS DC

4-7 45°
Flutes Helix P M K

DC APMX LU DCONMS NOF OAL CHW Shank EDP Number
5.0 5 10 6 4 57 0.2 C 3402189
5.0 5 10 6 4 57 0.2 W 3402163
5.0 10 - 6 4 57 0.2 C 3402194
5.0 10 - 6 4 57 0.2 W 3402167
6.0 6 - 6 4 57 0.25 C 3402190
6.0 6 - 6 4 57 0.25 W 3402164
6.0 12 - 6 4 57 0.25 C 3402195
6.0 12 - 6 4 57 0.25 W 3402168
6.0 12 18 6 4 57 0.25 C 3402202
6.0 12 18 6 4 57 0.25 W 3402174
7.0 7 - 8 4 63 0.25 C 3403122
8.0 8 - 8 4 63 0.25 C 3402191
8.0 8 - 8 4 63 0.25 W 3402188
8.0 16 - 8 4 63 0.25 C 3402196
8.0 16 - 8 4 63 0.25 W 3402169
8.0 16 24 8 4 63 0.25 C 3402203
8.0 16 24 8 4 63 0.25 W 3402175
8.0 12 32 8 4 68 0.25 C 3402208
8.0 12 32 8 4 68 0.25 W 3402180
10.0 10 - 10 4 72 0.3 C 3402192
10.0 10 - 10 4 72 0.3 W 3402165
10.0 20 - 10 4 72 0.3 C 3402197
10.0 20 - 10 4 72 0.3 W 3402170
10.0 20 30 10 4 72 0.3 C 3402204
10.0 20 30 10 4 72 0.3 W 3402176
10.0 15 40 10 4 80 0.3 C 3402209
10.0 15 40 10 4 80 0.3 W 3402181
12.0 12 - 12 4 83 0.35 C 3402193
12.0 12 - 12 4 83 0.35 W 3402166
12.0 24 - 12 4 83 0.35 C 3402198
12.0 24 - 12 4 83 0.35 W 3402171
12.0 24 36 12 4 83 0.35 C 3402205
12.0 24 36 12 4 83 0.35 W 3402177
12.0 18 48 12 4 100 0.35 C 3402210
12.0 18 48 12 4 100 0.35 W 3402182
16.0 32 - 16 5 92 0.4 C 3402200
16.0 32 - 16 5 92 0.4 W 3402172
16.0 32 48 16 5 100 0.4 C 3402206
16.0 32 48 16 5 100 0.4 W 3402178
