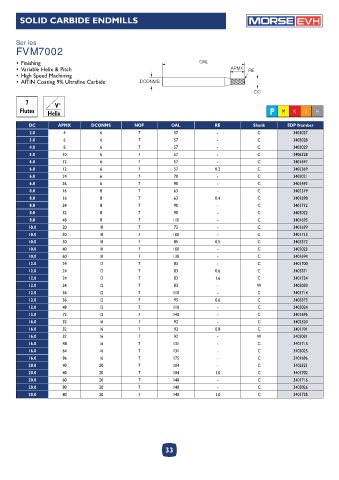

Page 33 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EVH

Series
FVM7002

• Finishing OAL
• Variable Helix & Pitch APMX RE
• High Speed Machining
• AlTiN Coating 9% Ultrafine Carbide DCONMS

DC
7 V°
Flutes Helix P M K S H

DC APMX DCONMS NOF OAL RE Shank EDP Number
2.0 4 6 7 57 - C 3403027
3.0 6 6 7 57 - C 3403028
4.0 8 6 7 57 - C 3403029
5.0 10 6 7 57 - C 3406328
6.0 12 6 7 57 - C 3401697
6.0 12 6 7 57 0.2 C 3403369
6.0 24 6 7 70 - C 3403021
6.0 36 6 7 90 - C 3401692
8.0 16 8 7 63 - C 3402519
8.0 16 8 7 63 0.4 C 3401698
8.0 24 8 7 90 - C 3401712
8.0 32 8 7 90 - C 3403022
8.0 48 8 7 110 - C 3401693
10.0 20 10 7 72 - C 3401699
10.0 30 10 7 100 - C 3401713
10.0 30 10 7 85 0.5 C 3403372
10.0 40 10 7 100 - C 3403023
10.0 60 10 7 130 - C 3401694
12.0 24 12 7 83 - C 3401700
12.0 24 12 7 83 0.6 C 3403371
12.0 24 12 7 83 1.6 C 3401734
12.0 24 12 7 83 - W 3403030
12.0 36 12 7 110 - C 3401714
12.0 36 12 7 95 0.6 C 3403373
12.0 48 12 7 110 - C 3403024
12.0 72 12 7 140 - C 3401695
16.0 32 16 7 92 - C 3402520
16.0 32 16 7 92 0.8 C 3401701
16.0 32 16 7 92 - W 3403031
16.0 48 16 7 131 - C 3401715
16.0 64 16 7 131 - C 3403025
16.0 96 16 7 175 - C 3401696
20.0 40 20 7 104 - C 3402521
20.0 40 20 7 104 1.0 C 3401702
20.0 60 20 7 140 - C 3401716
20.0 80 20 7 140 - C 3403026
20.0 80 20 7 140 1.0 C 3401735
