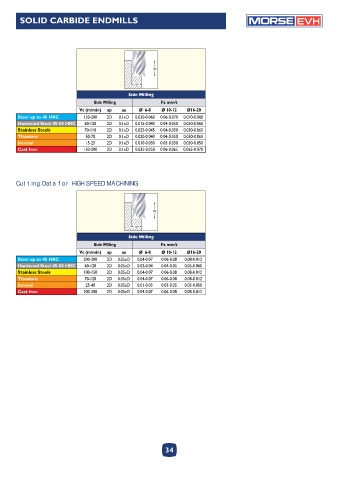

Page 34 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EVH

ap

ae
Side Milling
Side Milling Fz mm/t
Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20
Steel up to 45 HRC 150-200 2D 0.1xD 0.030-0.060 0.06-0.070 0.070-0.080
Hardened Steel 45-55 HRC 60-120 2D 0.1xD 0.015-0.040 0.04-0.050 0.050-0.060
Stainless Steels 70-110 2D 0.1xD 0.025-0.045 0.04-0.050 0.050-0.065
Titanium 50-70 2D 0.1xD 0.020-0.040 0.04-0.050 0.050-0.060
Inconel 15-25 2D 0.1xD 0.010-0.030 0.03-0.050 0.030-0.050
Cast Iron 150-200 2D 0.1xD 0.035-0.050 0.06-0.065 0.065-0.070

Cutting Data for HIGH SPEED MACHINING

ap

ae
Side Milling
Side Milling Fz mm/t
Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20
Steel up to 45 HRC 200-300 2D 0.05xD 0.04-0.07 0.06-0.08 0.08-0.012
Hardened Steel 45-55 HRC 60-120 2D 0.05xD 0.02-0.04 0.04-0.05 0.05-0.060
Stainless Steels 100-150 2D 0.05xD 0.04-0.07 0.06-0.08 0.08-0.012
Titanium 70-120 2D 0.05xD 0.04-0.07 0.06-0.08 0.08-0.012
Inconel 25-40 2D 0.05xD 0.01-0.03 0.03-0.05 0.03-0.050
Cast Iron 200-300 2D 0.05xD 0.04-0.07 0.06-0.08 0.08-0.012

34
