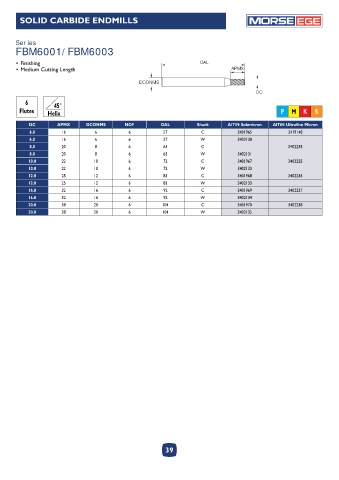

Page 39 - Morse_catalog_2022
P. 39
SOLID CARBIDE ENDMILLS EGE
Series
FBM6001 / FBM6003
• Finishing OAL
• Medium Cutting Length APMX
DCONMS
DC
6 45°
Flutes Helix P M K S
DC APMX DCONMS NOF OAL Shank AlTiN Submicron AlTiN Ultrafine Micron
6.0 16 6 6 57 C 3401965 3419148
6.0 16 6 6 57 W 3402130
8.0 20 8 6 63 C 3402235
8.0 20 8 6 63 W 3402131
10.0 22 10 6 72 C 3401967 3402225
10.0 22 10 6 72 W 3402132
12.0 25 12 6 83 C 3401968 3402236
12.0 25 12 6 83 W 3402133
16.0 32 16 6 92 C 3401969 3402237
16.0 32 16 6 92 W 3402134
20.0 38 20 6 104 C 3401970 3402238
20.0 38 20 6 104 W 3402135
