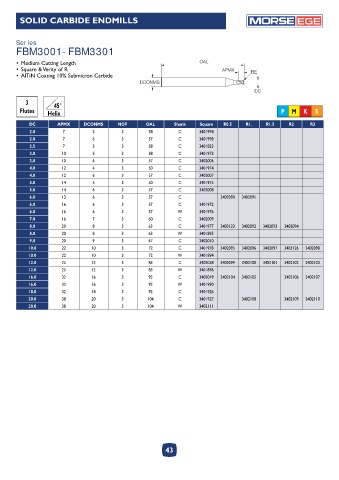

Page 43 - Morse_catalog_2022
P. 43
SOLID CARBIDE ENDMILLS EGE
Series
FBM3001 - FBM3301
• Medium Cutting Length OAL
• Square & Verity of R APMX RE
• AlTiN Coating 10% Submicron Carbide
DCONMS
DC
3 45°
Flutes Helix P M K S
DC APMX DCONMS NOF OAL Shank Square R0.5 R1. R1.5 R2 R3
2.0 7 3 3 38 C 3401994
2.0 7 6 3 57 C 3401998
2.5 7 3 3 38 C 3401823
3.0 10 3 3 38 C 3401973
3.0 10 6 3 57 C 3402006
4.0 12 4 3 50 C 3401974
4.0 12 6 3 57 C 3402007
5.0 14 5 3 50 C 3401975
5.0 14 6 3 57 C 3402008
6.0 13 6 3 57 C 3402090 3402091
6.0 16 6 3 57 C 3401972
6.0 16 6 3 57 W 3401976
7.0 16 7 3 60 C 3402009
8.0 20 8 3 63 C 3401977 3403123 3402092 3402093 3402094
8.0 20 8 3 63 W 3401895
9.0 20 9 3 67 C 3402010
10.0 22 10 3 72 C 3401978 3402095 3402096 3402097 3403126 3402098
10.0 22 10 3 72 W 3401894
12.0 25 12 3 83 C 3402058 3402099 3402100 3402101 3402102 3402103
12.0 25 12 3 83 W 3401896
16.0 32 16 3 92 C 3402049 3402104 3402105 3402106 3402107
16.0 32 16 3 92 W 3401990
18.0 32 18 3 92 C 3401926
20.0 38 20 3 104 C 3401927 3402108 3402109 3402110
20.0 38 20 3 104 W 3402111
