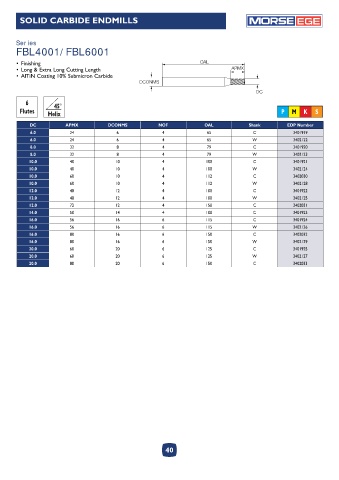

Page 40 - Morse_catalog_2022
P. 40
SOLID CARBIDE ENDMILLS EGE
Series
FBL4001 / FBL6001
• Finishing OAL
• Long & Extra Long Cutting Length APMX
• AlTiN Coating 10% Submicron Carbide
DCONMS
DC
6 45°
Flutes Helix P M K S
DC APMX DCONMS NOF OAL Shank EDP Number
6.0 24 6 4 65 C 3401919
6.0 24 6 4 65 W 3402122
8.0 32 8 4 79 C 3401920
8.0 32 8 4 79 W 3402123
10.0 40 10 4 100 C 3401921
10.0 40 10 4 100 W 3402124
10.0 60 10 4 112 C 3402030
10.0 60 10 4 112 W 3402128
12.0 48 12 4 100 C 3401922
12.0 48 12 4 100 W 3402125
12.0 72 12 4 150 C 3402031
14.0 50 14 4 100 C 3401923
16.0 56 16 6 115 C 3401924
16.0 56 16 6 115 W 3402126
16.0 80 16 6 150 C 3402032
16.0 80 16 6 150 W 3402129
20.0 60 20 6 125 C 3401925
20.0 60 20 6 125 W 3402127
20.0 80 20 6 150 C 3402033
