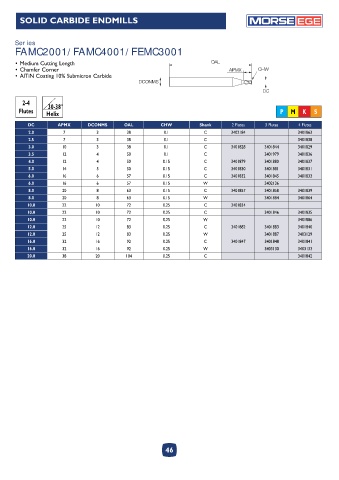

SOLID CARBIDE ENDMILLS EGE

Series
FAMC2001 / FAMC4001 / FEMC3001

• Medium Cutting Length OAL
• Chamfer Corner APMX CHW
• AlTiN Coating 10% Submicron Carbide
DCONMS
DC

2-4 30-38°
Flutes Helix P M K S

DC APMX DCONMS OAL CHW Shank 2 Flutes 3 Flutes 4 Flutes
2.0 7 3 38 0.1 C 3402184 3401863
2.5 7 3 38 0.1 C 3401838
3.0 10 3 38 0.1 C 3401828 3401844 3401829
3.5 12 4 50 0.1 C 3401979 3401836
4.0 12 4 50 0.15 C 3401879 3401880 3401837
5.0 14 5 50 0.15 C 3401830 3401881 3401831
6.0 16 6 57 0.15 C 3401832 3401845 3401833
6.0 16 6 57 0.15 W 3402136
8.0 20 8 63 0.15 C 3401857 3401858 3401839
8.0 20 8 63 0.15 W 3401884 3401864
10.0 22 10 72 0.25 C 3401834
10.0 22 10 72 0.25 C 3401846 3401835
10.0 22 10 72 0.25 W 3401886
12.0 25 12 83 0.25 C 3401882 3401883 3401840
12.0 25 12 83 0.25 W 3401887 3403129
16.0 32 16 92 0.25 C 3401847 3401848 3401841
16.0 32 16 92 0.25 W 3403130 3403133
20.0 38 20 104 0.25 C 3401842
