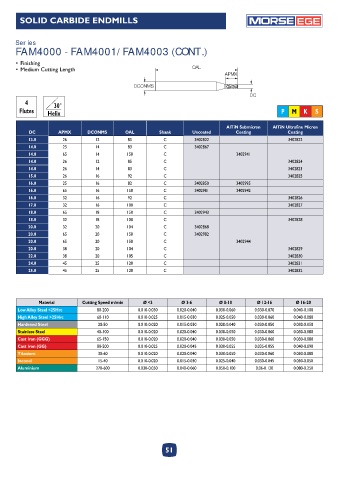

Page 51 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EGE

Series
FAM4000 - FAM4001 / FAM4003 (CONT.)

• Finishing
• Medium Cutting Length OAL
APMX
DCONMS
DC
4 30°
Flutes Helix P M K S

AlTiN Submicron AlTiN Ultrafine Micron
DC APMX DCONMS OAL Shank Uncoated Coating Coating
13.0 26 12 85 C 3402822 3402822
14.0 25 14 83 C 3402867
14.0 65 14 150 C 3402941
14.0 26 12 85 C 3402824
14.0 26 14 83 C 3402823
15.0 26 16 92 C 3402825
16.0 25 16 82 C 3402850 3402995
16.0 65 16 150 C 3402981 3402942
16.0 32 16 92 C 3402826
17.0 32 16 100 C 3402827
18.0 65 18 150 C 3402943
18.0 32 18 100 C 3402828
20.0 32 20 104 C 3402868
20.0 65 20 150 C 3402982
20.0 65 20 150 C 3402944
20.0 38 20 104 C 3402829
22.0 38 20 105 C 3402830
24.0 45 25 120 C 3402831
25.0 45 25 120 C 3402832

Material Cutting Speed m/min Ø <3 Ø 3-6 Ø 8-10 Ø 12-16 Ø 16-20
Low Alloy Steel <25Hrc 80-200 0.010-0.030 0.020-0.040 0.030-0.060 0.030-0.070 0.040-0.100
High Alloy Steel >25Hrc 60-110 0.010-0.025 0.015-0.030 0.025-0.050 0.030-0.060 0.040-0.080
Hardened Steel 20-50 0.010-0.020 0.015-0.030 0.020-0.040 0.030-0.050 0.030-0.050
Stainless Steel 40-100 0.010-0.020 0.020-0.040 0.030-0.050 0.030-0.060 0.030-0.080
Cast Iron (GGG) 65-150 0.010-0.020 0.020-0.040 0.030-0.050 0.030-0.060 0.030-0.080
Cast Iron (GG) 80-200 0.010-0.025 0.020-0.045 0.030-0.055 0.035-0.055 0.040-0.090
Titanium 30-60 0.010-0.020 0.020-0.040 0.030-0.050 0.030-0.060 0.030-0.080
Inconel 15-40 0.010-0.020 0.015-0.030 0.025-0.040 0.030-0.045 0.030-0.050
Aluminium 270-600 0.030-0.050 0.040-0.060 0.050-0.100 0.06-0.120 0.080-0.250

51
