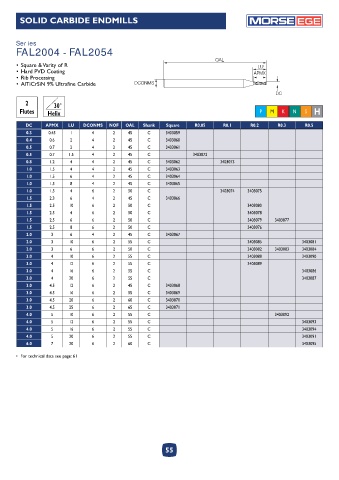

SOLID CARBIDE ENDMILLS EGE

Series
FAL2004 - FAL2054
OAL
• Square & Varity of R LU
• Hard PVD Coating APMX
• Rib Processing
• AlTiCrSiN 9% Ultrafine Carbide DCONMS
DC
2 30°
Flutes Helix P M K N S H

DC APMX LU DCONMS NOF OAL Shank Square R0.05 R0.1 R0.2 R0.3 R0.5
0.3 0.45 1 4 2 45 C 3403059
0.4 0.6 2 4 2 45 C 3403060
0.5 0.7 2 4 2 45 C 3403061
0.5 0.7 1.5 4 2 45 C 3403072
0.8 1.2 4 4 2 45 C 3403062 3403073
1.0 1.5 4 4 2 45 C 3403063
1.0 1.5 6 4 2 45 C 3403064
1.0 1.5 8 4 2 45 C 3403065
1.0 1.5 4 6 2 50 C 3403074 3403075
1.5 2.3 6 4 2 45 C 3403066
1.5 2.5 10 6 2 50 C 3403080
1.5 2.5 4 6 2 50 C 3403078
1.5 2.5 6 6 2 50 C 3403079 3403077
1.5 2.5 8 6 2 50 C 3403076
2.0 3 6 4 2 45 C 3403067
2.0 3 10 6 2 55 C 3403085 3403081
2.0 3 6 6 2 50 C 3403082 3403083 3403084
3.0 4 10 6 2 55 C 3403088 3403090
3.0 4 12 6 2 55 C 3403089
3.0 4 16 6 2 55 C 3403086
3.0 4 20 6 2 55 C 3403087
3.0 4.5 12 6 2 45 C 3403068
3.0 4.5 16 6 2 55 C 3403069
3.0 4.5 20 6 2 60 C 3403070
3.0 4.5 25 6 2 65 C 3403071
4.0 5 10 6 2 55 C 3403092
4.0 5 12 6 2 55 C 3403093
4.0 5 16 6 2 55 C 3403094
4.0 5 20 6 2 55 C 3403091
6.0 7 20 6 2 60 C 3403095

• For technical data see page: 61
