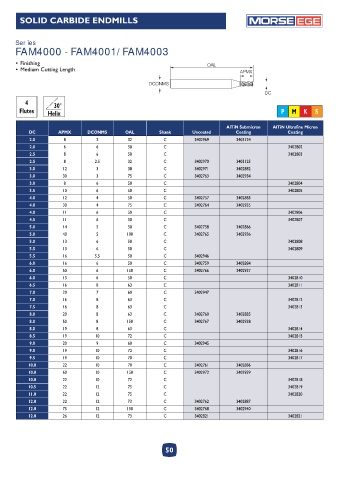

Page 50 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EGE

Series
FAM4000 - FAM4001 / FAM4003

• Finishing OAL
• Medium Cutting Length APMX

DCONMS
DC
4 30°
Flutes Helix P M K S

AlTiN Submicron AlTiN Ultrafine Micron
DC APMX DCONMS OAL Shank Uncoated Coating Coating
2.0 8 2 32 C 3402969 3403124
2.0 6 6 50 C 3402802
2.5 8 6 50 C 3402803
2.5 8 2.5 32 C 3402970 3403125
3.0 12 3 38 C 3402971 3402882
3.0 30 3 75 C 3402763 3402934
3.0 8 6 50 C 3402804
3.5 10 6 50 C 3402805
4.0 12 4 50 C 3402757 3402883
4.0 30 4 75 C 3402764 3402935
4.0 11 6 50 C 3402806
4.5 11 6 50 C 3402807
5.0 14 5 50 C 3402758 3402866
5.0 40 5 100 C 3402765 3402936
5.0 13 6 50 C 3402808
5.5 13 6 50 C 3402809
5.5 16 5.5 50 C 3402946
6.0 16 6 50 C 3402759 3402884
6.0 50 6 150 C 3402766 3402937
6.0 13 6 50 C 3402810
6.5 16 8 63 C 3402811
7.0 20 7 60 C 3402947
7.0 16 8 63 C 3402812
7.5 16 8 63 C 3402813
8.0 20 8 63 C 3402760 3402885
8.0 50 8 150 C 3402767 3402938
8.0 19 8 63 C 3402814
8.5 19 10 72 C 3402815
9.0 20 9 60 C 3402945
9.0 19 10 72 C 3402816
9.5 19 10 70 C 3402817
10.0 22 10 70 C 3402761 3402886
10.0 60 10 150 C 3402972 3402939
10.0 22 10 72 C 3402818
10.5 22 12 75 C 3402819
11.0 22 12 75 C 3402820
12.0 22 12 73 C 3402762 3402887
12.0 75 12 150 C 3402768 3402940
12.0 26 12 73 C 3402821 3402821

50
