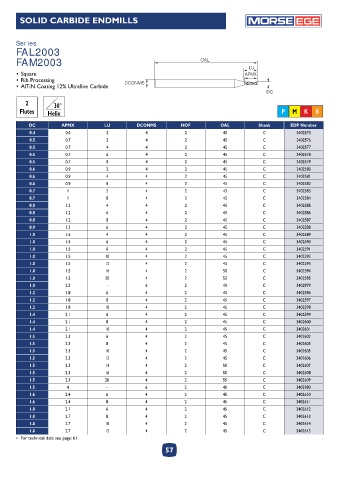

Page 57 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EGE

Series
FAL2003

FAM2003 OAL
LU
• Square APMX
• Rib Processing DCONMS
• AlTiN Coating 12% Ultrafine Carbide
DC
2 30°
Flutes Helix P M K S

DC APMX LU DCONMS NOF OAL Shank EDP Number
0.4 0.6 2 4 2 45 C 3402575
0.5 0.7 2 4 2 45 C 3402576
0.5 0.7 4 4 2 45 C 3402577
0.5 0.7 6 4 2 45 C 3402578
0.5 0.7 8 4 2 45 C 3402579
0.6 0.9 2 4 2 45 C 3402580
0.6 0.9 4 4 2 45 C 3402581
0.6 0.9 8 4 2 45 C 3402582
0.7 1 2 4 2 45 C 3402583
0.7 1 8 4 2 45 C 3402584
0.8 1.2 4 4 2 45 C 3402585
0.8 1.2 6 4 2 45 C 3402586
0.8 1.2 8 4 2 45 C 3402587
0.9 1.3 6 4 2 45 C 3402588
1.0 1.5 4 4 2 45 C 3402589
1.0 1.5 6 4 2 45 C 3402590
1.0 1.5 8 4 2 45 C 3402591
1.0 1.5 10 4 2 45 C 3402592
1.0 1.5 12 4 2 45 C 3402593
1.0 1.5 16 4 2 50 C 3402594
1.0 1.5 20 4 2 55 C 3402595
1.0 2.5 - 6 2 40 C 3402979
1.2 1.8 6 4 2 45 C 3402596
1.2 1.8 8 4 2 45 C 3402597
1.2 1.8 10 4 2 45 C 3402598
1.4 2.1 6 4 2 45 C 3402599
1.4 2.1 8 4 2 45 C 3402600
1.4 2.1 10 4 2 45 C 3402601
1.5 2.3 6 4 2 45 C 3402602
1.5 2.3 8 4 2 45 C 3402603
1.5 2.3 10 4 2 45 C 3402605
1.5 2.3 12 4 2 45 C 3402606
1.5 2.3 14 4 2 50 C 3402607
1.5 2.3 16 4 2 50 C 3402608
1.5 2.3 20 4 2 55 C 3402609
1.5 4 - 6 2 40 C 3402980
1.6 2.4 6 4 2 45 C 3402610
1.6 2.4 8 4 2 45 C 3402611
1.8 2.7 6 4 2 45 C 3402612
1.8 2.7 8 4 2 45 C 3402613
1.8 2.7 10 4 2 45 C 3402614
1.8 2.7 12 4 2 45 C 3402615
• For technical data see page: 61
