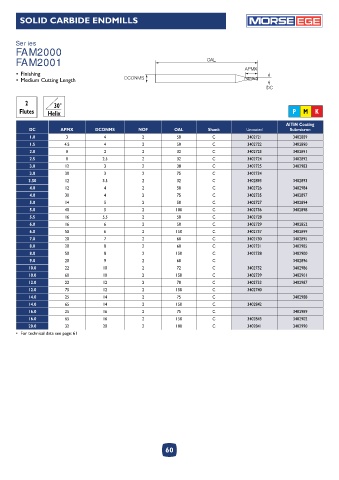

Page 60 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EGE

Series
FAM2000

FAM2001 OAL
APMX
• Finishing
• Medium Cutting Length DCONMS
DC

2 30°
Flutes Helix P M K

AlTiN Coating
DC APMX DCONMS NOF OAL Shank Uncoated Submicron
1.0 3 4 2 50 C 3402721 3402889
1.5 4.5 4 2 50 C 3402722 3402890
2.0 8 2 2 32 C 3402723 3402891
2.5 8 2.5 2 32 C 3402724 3402892
3.0 12 3 2 38 C 3402725 3402983
3.0 30 3 2 75 C 3402734
3.50 12 3.5 2 32 C 3402893 3402893
4.0 12 4 2 50 C 3402726 3402984
4.0 30 4 2 75 C 3402735 3402897
5.0 14 5 2 50 C 3402727 3402894
5.0 40 5 2 100 C 3402736 3402898
5.5 16 5.5 2 50 C 3402728
6.0 16 6 2 50 C 3402729 3402852
6.0 50 6 2 150 C 3402737 3402899
7.0 20 7 2 60 C 3402730 3402895
8.0 20 8 2 60 C 3402731 3402985
8.0 50 8 2 150 C 3402738 3402900
9.0 20 9 2 60 C 3402896
10.0 22 10 2 72 C 3402732 3402986
10.0 60 10 2 150 C 3402739 3402901
12.0 22 12 2 70 C 3402733 3402987
12.0 75 12 2 150 C 3402740
14.0 25 14 2 75 C 3402988
14.0 65 14 2 150 C 3402842
16.0 25 16 2 75 C 3402989
16.0 65 16 2 150 C 3402843 3402902
20.0 32 20 2 100 C 3402841 3402990
• For technical data see page: 61
