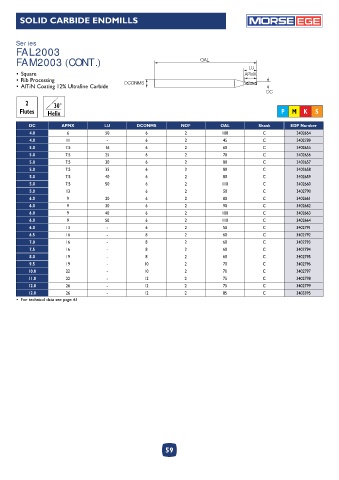

Page 59 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EGE

Series
FAL2003
FAM2003 (CONT.) OAL
LU
• Square APMX
• Rib Processing DCONMS
• AlTiN Coating 12% Ultrafine Carbide
DC
2 30°
Flutes Helix P M K S

DC APMX LU DCONMS NOF OAL Shank EDP Number
4.0 6 50 6 2 100 C 3402654
4.0 11 - 6 2 45 C 3402789
5.0 7.5 16 6 2 60 C 3402655
5.0 7.5 25 6 2 70 C 3402656
5.0 7.5 30 6 2 80 C 3402657
5.0 7.5 35 6 2 80 C 3402658
5.0 7.5 40 6 2 80 C 3402659
5.0 7.5 50 6 2 110 C 3402660
5.0 13 6 2 50 C 3402790
6.0 9 20 6 2 80 C 3402661
6.0 9 30 6 2 90 C 3402662
6.0 9 40 6 2 100 C 3402663
6.0 9 50 6 2 110 C 3402664
6.0 13 - 6 2 50 C 3402791
6.5 16 - 8 2 60 C 3402792
7.0 16 - 8 2 60 C 3402793
7.5 16 - 8 2 60 C 3402794
8.0 19 - 8 2 60 C 3402795
9.5 19 - 10 2 70 C 3402796
10.0 22 - 10 2 70 C 3402797
11.0 22 - 12 2 75 C 3402798
12.0 26 - 12 2 75 C 3402799
12.0 26 - 12 2 85 C 3403395
• For technical data see page: 61
