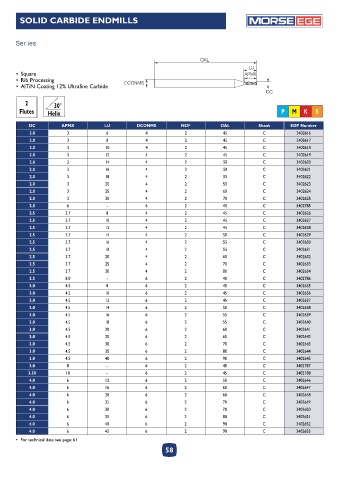

Page 58 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EGE

Series
FAL2003

FAM2003 OAL
LU
• Square APMX
• Rib Processing DCONMS
• AlTiN Coating 12% Ultrafine Carbide
DC
2 30°
Flutes Helix P M K S

DC APMX LU DCONMS NOF OAL Shank EDP Number
2.0 3 6 4 2 45 C 3402616
2.0 3 8 4 2 45 C 3402617
2.0 3 10 4 2 45 C 3402618
2.0 3 12 4 2 45 C 3402619
2.0 3 14 4 2 50 C 3402620
2.0 3 16 4 2 50 C 3402621
2.0 3 18 4 2 55 C 3402622
2.0 3 20 4 2 55 C 3402623
2.0 3 25 4 2 60 C 3402624
2.0 3 30 4 2 70 C 3402625
2.0 6 - 6 2 40 C 3402785
2.5 3.7 8 4 2 45 C 3402626
2.5 3.7 10 4 2 45 C 3402627
2.5 3.7 12 4 2 45 C 3402628
2.5 3.7 14 4 2 50 C 3402629
2.5 3.7 16 4 2 55 C 3402630
2.5 3.7 18 4 2 55 C 3402631
2.5 3.7 20 4 2 60 C 3402632
2.5 3.7 25 4 2 70 C 3402633
2.5 3.7 30 4 2 80 C 3402634
2.5 8.0 - 6 2 40 C 3402786
3.0 4.5 8 6 2 45 C 3402635
3.0 4.5 10 6 2 45 C 3402636
3.0 4.5 12 6 2 45 C 3402637
3.0 4.5 14 6 2 50 C 3402638
3.0 4.5 16 6 2 55 C 3402639
3.0 4.5 18 6 2 55 C 3402640
3.0 4.5 20 6 2 60 C 3402641
3.0 4.5 25 6 2 65 C 3402642
3.0 4.5 30 6 2 70 C 3402643
3.0 4.5 35 6 2 80 C 3402644
3.0 4.5 40 6 2 90 C 3402645
3.0 8 - 6 2 45 C 3402787
3.50 10 - 6 2 45 C 3402788
4.0 6 12 6 2 50 C 3402646
4.0 6 16 6 2 60 C 3402647
4.0 6 20 6 2 60 C 3402648
4.0 6 25 6 2 70 C 3402649
4.0 6 30 6 2 70 C 3402650
4.0 6 35 6 2 80 C 3402651
4.0 6 40 6 2 90 C 3402652
4.0 6 45 6 2 90 C 3402653
• For technical data see page: 61
