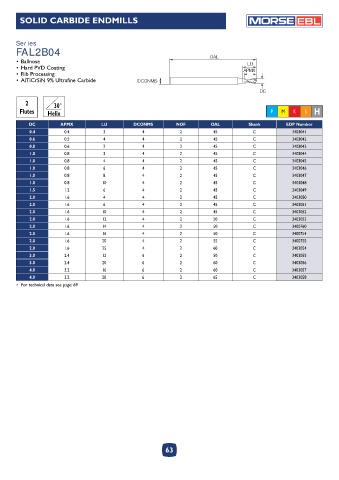

SOLID CARBIDE ENDMILLS EBL
Series
FAL2B04
• Ballnose OAL LU
• Hard PVD Coating APMX
• Rib Processing
• AlTiCrSiN 9% Ultrafine Carbide DCONMS
DC
2 30°
Flutes Helix P M K S H
DC APMX LU DCONMS NOF OAL Shank EDP Number
0.4 0.4 3 4 2 45 C 3403041
0.6 0.5 4 4 2 45 C 3403042
0.8 0.6 2 4 2 45 C 3403043
1.0 0.8 3 4 2 45 C 3403044
1.0 0.8 4 4 2 45 C 3403045
1.0 0.8 6 4 2 45 C 3403046
1.0 0.8 8 4 2 45 C 3403047
1.0 0.8 10 4 2 45 C 3403048
1.5 1.2 6 4 2 45 C 3403049
2.0 1.6 4 4 2 45 C 3403050
2.0 1.6 6 4 2 45 C 3403051
2.0 1.6 10 4 2 45 C 3403052
2.0 1.6 12 4 2 50 C 3403053
2.0 1.6 14 4 2 50 C 3400760
2.0 1.6 16 4 2 50 C 3400754
2.0 1.6 20 4 2 55 C 3400755
2.0 1.6 25 4 2 60 C 3403054
3.0 2.4 12 6 2 50 C 3403055
3.0 2.4 20 6 2 60 C 3403056
4.0 3.2 16 6 2 60 C 3403057
4.0 3.2 20 6 2 65 C 3403058
• For technical data see page: 69
