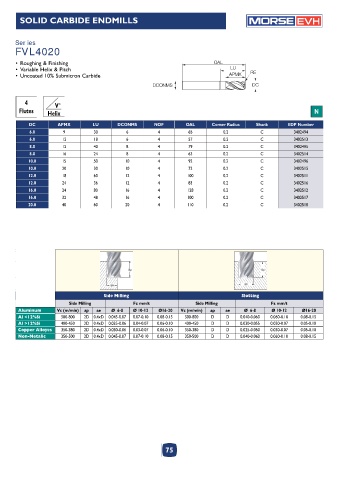

Page 75 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EVH

Series
FVL4020

• Roughing & Finishing OAL
• Variable Helix & Pitch LU
• Uncoated 10% Submicron Carbide APMX RE
DCONMS DC

4 V°
Flutes Helix N

DC APMX LU DCONMS NOF OAL Corner Radius Shank EDP Number
6.0 9 30 6 4 65 0.2 C 3402494
6.0 12 18 6 4 57 0.2 C 3402513
8.0 12 40 8 4 79 0.2 C 3402495
8.0 16 24 8 4 63 0.2 C 3402514
10.0 15 50 10 4 92 0.2 C 3402496
10.0 20 30 10 4 72 0.2 C 3402515
12.0 18 60 12 4 100 0.2 C 3402511
12.0 24 36 12 4 83 0.2 C 3402516
16.0 24 80 16 4 128 0.2 C 3402512
16.0 32 48 16 4 100 0.2 C 3402517
20.0 40 60 20 4 110 0.2 C 3402518

ap ap

ae ae
Side Milling Slotting
Side Milling Fz mm/t Side Milling Fz mm/t
Aluminum Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20 Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20
Al <12%Si 500-800 2D 0.4xD 0.045-0.07 0.07-0.10 0.08-0.15 500-800 D D 0.040-0.060 0.060-0.10 0.08-0.15
Al >12%Si 400-450 2D 0.4xD 0.035-0.06 0.04-0.07 0.06-0.10 400-450 D D 0.030-0.055 0.030-0.07 0.05-0.10
Copper Alloyes 350-380 2D 0.4xD 0.030-0.06 0.03-0.07 0.06-0.10 350-380 D D 0.025-0.050 0.030-0.07 0.05-0.10
Non-Metalic 350-500 2D 0.4xD 0.045-0.07 0.07-0.10 0.08-0.15 350-500 D D 0.040-0.060 0.060-0.10 0.08-0.15
