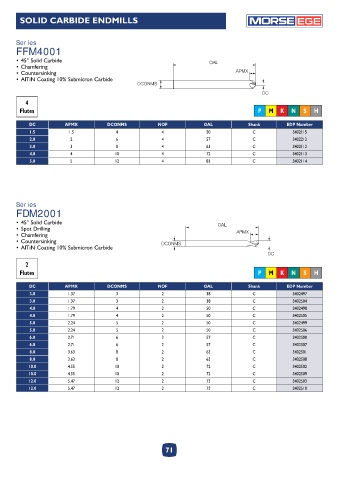

Page 71 - Morse_catalog_2022
P. 71
SOLID CARBIDE ENDMILLS EGE
Series
FFM4001
• 45° Solid Carbide OAL
• Chamfering
• Countersinking APMX
• AlTiN Coating 10% Submicron Carbide
DCONMS
DC
4
Flutes P M K N S H
DC APMX DCONMS NOF OAL Shank EDP Number
1.5 1.5 4 4 50 C 3402115
2.0 2 6 4 57 C 3402212
3.0 3 8 4 63 C 3402112
4.0 4 10 4 72 C 3402113
5.0 5 12 4 83 C 3402114
Series
FDM2001
• 45° Solid Carbide OAL
• Spot Drilling
• Chamfering APMX
• Countersinking DCONMS
• AlTiN Coating 10% Submicron Carbide
DC
2
Flutes P M K N S H
DC APMX DCONMS NOF OAL Shank EDP Number
3.0 1.37 3 2 38 C 3402497
3.0 1.37 3 2 38 C 3402504
4.0 1.79 4 2 50 C 3402498
4.0 1.79 4 2 50 C 3402505
5.0 2.24 5 2 50 C 3402499
5.0 2.24 5 2 50 C 3402506
6.0 2.71 6 2 57 C 3402500
6.0 2.71 6 2 57 C 3402507
8.0 3.63 8 2 63 C 3402501
8.0 3.63 8 2 63 C 3402508
10.0 4.55 10 2 72 C 3402502
10.0 4.55 10 2 72 C 3402509
12.0 5.47 12 2 73 C 3402503
12.0 5.47 12 2 73 C 3402510
