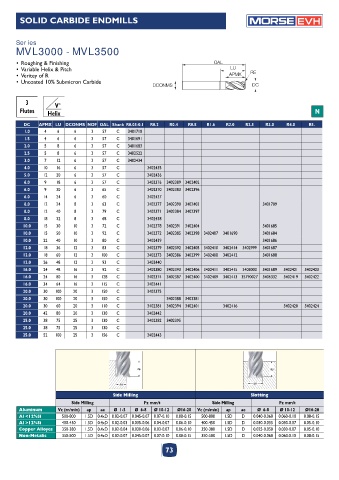

Page 73 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EVH

Series
MVL3000 - MVL3500

• Roughing & Finishing OAL
• Variable Helix & Pitch LU
• Veritey of R APMX RE
• Uncoated 10% Submicron Carbide
DCONMS DC

3 V°
Flutes Helix N

DC APMX LU DCONMS NOF OAL Shank R0.05-0.1 R0.2 R0.4 R0.8 R1.6 R2.0 R2.5 R3.0 R4.0 R5.
1.0 4 6 6 3 57 C 3401710
1.5 4 6 6 3 57 C 3401691
2.0 5 8 6 3 57 C 3401683
2.5 5 8 6 3 57 C 3402522
3.0 7 12 6 3 57 C 3402434
4.0 10 16 6 3 57 C 3402435
5.0 12 20 6 3 57 C 3402436
6.0 9 18 6 3 57 C 3402376 3402389 3402402
6.0 9 30 6 3 65 C 3402370 3402383 3402396
6.0 14 24 6 3 60 C 3402437
8.0 12 24 8 3 63 C 3402377 3402390 3402403 3401709
8.0 12 40 8 3 79 C 3402371 3402384 3402397
8.0 18 32 8 3 68 C 3402438
10.0 15 30 10 3 72 C 3402378 3402391 3402404 3401685
10.0 15 50 10 3 92 C 3402372 3402385 3402398 3402407 3401690 3401684
10.0 22 40 10 3 80 C 3402439 3401686
12.0 18 36 12 3 83 C 3402379 3402392 3402405 3402410 3402414 3402999 3401687
12.0 18 60 12 3 100 C 3402373 3402386 3402399 3402408 3402412 3401688
12.0 26 48 12 3 93 C 3402440
16.0 24 48 16 3 92 C 3402380 3402393 3402406 3402411 3402415 3403000 3401689 3402421 3402423
16.0 24 80 16 3 128 C 3402374 3402387 3402400 3402409 3402413 35790027 3406332 3402419 3402422
16.0 34 64 16 3 115 C 3402441
20.0 30 100 20 3 150 C 3402375
20.0 30 100 20 3 150 C 3402388 3403381
20.0 30 60 20 3 110 C 3402381 3402394 3402401 3402416 3402420 3402424
20.0 42 80 20 3 130 C 3402442
25.0 38 75 25 3 130 C 3402382 3402395
25.0 38 75 25 3 130 C
25.0 52 100 25 3 156 C 3402443

ap ap

ae ae
Side Milling Slotting
Side Milling Fz mm/t Side Milling Fz mm/t
Aluminum Vc (m/min) ap ae Ø 1-5 Ø 6-8 Ø 10-12 Ø16-20 Vc (m/min) ap ae Ø 6-8 Ø 10-12 Ø16-20
Al <12%Si 500-800 1.5D 0.4xD 0.02-0.07 0.045-0.07 0.07-0.10 0.08-0.15 500-800 1.5D D 0.040-0.060 0.060-0.10 0.08-0.15
Al >12%Si 400-450 1.5D 0.4xD 0.02-0.03 0.035-0.06 0.04-0.07 0.06-0.10 400-450 1.5D D 0.030-0.055 0.030-0.07 0.05-0.10
Copper Alloyes 350-380 1.5D 0.4xD 0.02-0.04 0.030-0.06 0.03-0.07 0.06-0.10 350-380 1.5D D 0.025-0.050 0.030-0.07 0.05-0.10
Non-Metalic 350-500 1.5D 0.4xD 0.02-0.07 0.045-0.07 0.07-0.10 0.08-0.15 350-500 1.5D D 0.040-0.060 0.060-0.10 0.08-0.15
