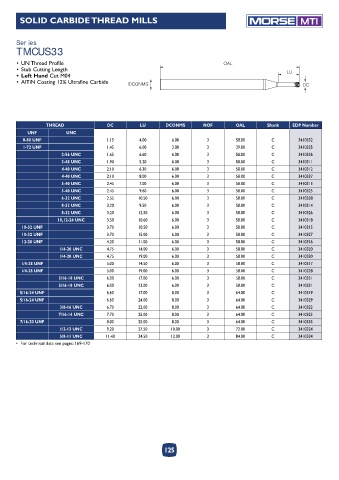

SOLID CARBIDE THREAD MILLS MTI

Series
TMCUS33

• UN Thread Profile OAL
• Stub Cutting Length LU
• Left Hand Cut M04
• AlTiN Coating 12% Ultrafine Carbide DCONMS DC

THREAD DC LU DCONMS NOF OAL Shank EDP Number
UNF UNC
0-80 UNF 1.15 4.00 6.00 3 58.00 C 3410332
1-72 UNF 1.45 6.00 3.00 3 39.00 C 3410335
2-56 UNC 1.65 6.60 6.00 3 58.00 C 3410336
3-48 UNC 1.90 5.20 6.00 3 58.00 C 3410311
4-40 UNC 2.10 6.30 6.00 3 58.00 C 3410312
4-40 UNC 2.10 8.00 6.00 3 58.00 C 3410337
5-40 UNC 2.45 7.00 6.00 3 58.00 C 3410313
5-40 UNC 2.45 9.60 6.00 3 58.00 C 3410325
6-32 UNC 2.55 10.50 6.00 3 58.00 C 3410338
8-32 UNC 3.20 9.50 6.00 3 58.00 C 3410314
8-32 UNC 3.20 12.50 6.00 3 58.00 C 3410326
10,12-24 UNC 3.50 10.60 6.00 3 58.00 C 3410318
10-32 UNF 3.70 10.50 6.00 3 58.00 C 3410315
10-32 UNF 3.70 15.00 6.00 3 58.00 C 3410327
12-28 UNF 4.20 11.00 6.00 3 58.00 C 3410316
1/4-20 UNC 4.75 14.00 6.00 3 58.00 C 3410320
1/4-20 UNC 4.75 19.00 6.00 3 58.00 C 3410330
1/4-28 UNF 5.00 14.50 6.00 3 58.00 C 3410317
1/4-28 UNF 5.00 19.00 6.00 3 58.00 C 3410328
5/16-18 UNC 6.00 17.00 6.00 3 58.00 C 3410321
5/16-18 UNC 6.00 23.00 6.00 3 58.00 C 3410331
5/16-24 UNF 6.60 17.00 8.00 3 64.00 C 3410319
5/16-24 UNF 6.60 24.00 8.00 3 64.00 C 3410329
3/8-16 UNC 6.70 22.00 8.00 3 64.00 C 3410322
7/16-14 UNC 7.70 25.00 8.00 3 64.00 C 3410323
7/16-20 UNF 8.00 25.00 8.00 3 64.00 C 3410333
1/2-13 UNC 9.20 27.50 10.00 3 73.00 C 3410324
5/8-11 UNC 11.40 34.50 12.00 3 84.00 C 3410334
• For technical data see pages: 169-170
