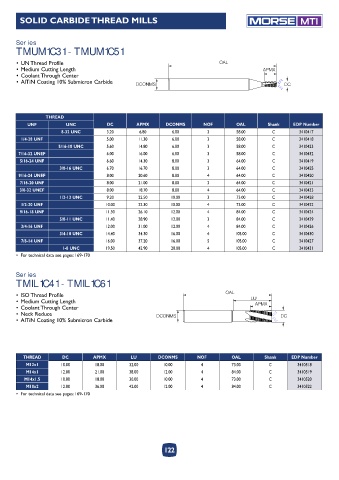

SOLID CARBIDE THREAD MILLS MTI

Series
TMUM1C31 - TMUM1C51

• UN Thread Profile OAL
• Medium Cutting Length APMX
• Coolant Through Center
• AlTiN Coating 10% Submicron Carbide DCONMS DC

THREAD
UNF UNC DC APMX DCONMS NOF OAL Shank EDP Number
8-32 UNC 3.20 6.80 6.00 3 58.00 C 3410417
1/4-28 UNF 5.00 11.30 6.00 3 58.00 C 3410418
5/16-18 UNC 5.60 14.80 6.00 3 58.00 C 3410423
7/16-32 UNEF 6.00 16.00 6.00 3 58.00 C 3410432
5/16-24 UNF 6.60 14.30 8.00 3 64.00 C 3410419
3/8-16 UNC 6.70 16.70 8.00 3 64.00 C 3410425
9/16-24 UNEF 8.00 20.60 8.00 4 64.00 C 3410420
7/16-20 UNF 8.00 21.00 8.00 3 64.00 C 3410421
3/8-32 UNEF 8.00 18.70 8.00 4 64.00 C 3410433
1/2-13 UNC 9.20 22.50 10.00 3 73.00 C 3410428
1/2-20 UNF 10.00 22.30 10.00 4 73.00 C 3410422
9/16-18 UNF 11.30 26.10 12.00 4 84.00 C 3410424
5/8-11 UNC 11.40 28.90 12.00 3 84.00 C 3410429
3/4-16 UNF 12.00 31.00 12.00 4 84.00 C 3410426
3/4-10 UNC 14.40 34.30 16.00 4 105.00 C 3410430
7/8-14 UNF 16.00 37.20 16.00 5 105.00 C 3410427
1-8 UNC 19.50 42.90 20.00 4 105.00 C 3410431
• For technical data see pages: 169-170

Series
TMIL1C41 - TMIL1C61

• ISO Thread Profile OAL
• Medium Cutting Length LU APMX
• Coolant Through Center
• Neck Reduce DCONMS DC
• AlTiN Coating 10% Submicron Carbide

THREAD DC APMX LU DCONMS NOF OAL Shank EDP Number
M12x1 10.00 18.00 32.00 10.00 4 73.00 C 3410518
M14x1 12.00 21.00 38.00 12.00 4 84.00 C 3410519
M14x1.5 10.00 18.00 30.00 10.00 4 73.00 C 3410520
M18x2 12.00 36.00 42.00 12.00 4 84.00 C 3410522
• For technical data see pages: 169-170
