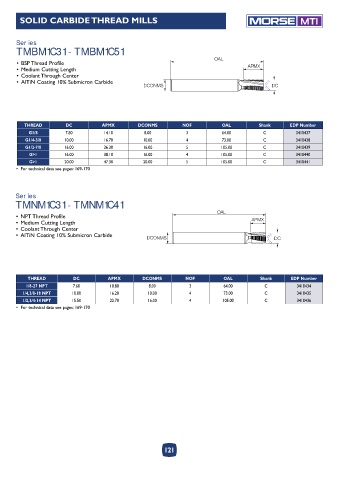

SOLID CARBIDE THREAD MILLS MTI

Series
TMBM1C31 - TMBM1C51
OAL
• BSP Thread Profile
• Medium Cutting Length APMX
• Coolant Through Center
• AlTiN Coating 10% Submicron Carbide
DCONMS DC

THREAD DC APMX DCONMS NOF OAL Shank EDP Number
G1/8 7.80 14.10 8.00 3 64.00 C 3410437
G1/4-3/8 10.00 16.70 10.00 4 73.00 C 3410438
G1/2-7/8 16.00 26.30 16.00 5 105.00 C 3410439
G>1 16.00 38.10 16.00 4 105.00 C 3410440
G>1 20.00 47.30 20.00 5 105.00 C 3410441
• For technical data see pages: 169-170

Series
TMNM1C31 - TMNM1C41
OAL
• NPT Thread Profile
• Medium Cutting Length APMX
• Coolant Through Center
• AlTiN Coating 10% Submicron Carbide DCONMS DC

THREAD DC APMX DCONMS NOF OAL Shank EDP Number
1/8-27 NPT 7.60 10.80 8.00 3 64.00 C 3410434
1/4,3/8-18 NPT 10.00 16.20 10.00 4 73.00 C 3410435
1/2,3/4-14 NPT 15.50 22.70 16.00 4 105.00 C 3410436
• For technical data see pages: 169-170
