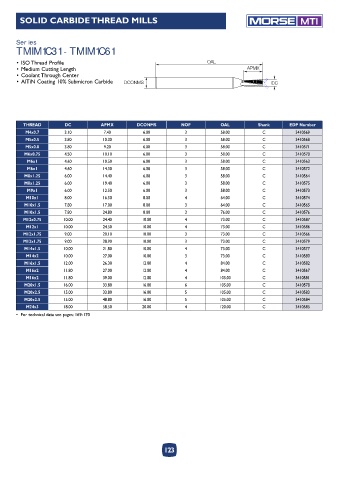

Page 123 - Morse_catalog_2022

SOLID CARBIDE THREAD MILLS MTI

Series
TMIM1C31 - TMIM1C61

• ISO Thread Profile OAL
• Medium Cutting Length APMX
• Coolant Through Center
• AlTiN Coating 10% Submicron Carbide DCONMS DC

THREAD DC APMX DCONMS NOF OAL Shank EDP Number
M4x0.7 3.10 7.40 6.00 3 58.00 C 3410569
M5x0.5 3.80 10.30 6.00 3 58.00 C 3410568
M5x0.8 3.80 9.20 6.00 3 58.00 C 3410571
M6x0.75 4.50 10.10 6.00 3 58.00 C 3410570
M6x1 4.60 10.50 6.00 3 58.00 C 3410563
M6x1 4.60 14.50 6.00 3 58.00 C 3410572
M8x1.25 6.00 14.40 6.00 3 58.00 C 3410564
M8x1.25 6.00 19.40 6.00 3 58.00 C 3410575
M9x1 6.00 12.50 6.00 3 58.00 C 3410573
M10x1 8.00 16.50 8.00 4 64.00 C 3410574
M10x1.5 7.80 17.00 8.00 3 64.00 C 3410565
M10x1.5 7.80 24.80 8.00 3 76.00 C 3410576
M12x0.75 10.00 24.40 10.00 4 73.00 C 3410587
M12x1 10.00 24.50 10.00 4 73.00 C 3410586
M12x1.75 9.00 20.10 10.00 3 73.00 C 3410566
M12x1.75 9.00 28.90 10.00 3 73.00 C 3410579
M14x1.5 10.00 21.80 10.00 4 73.00 C 3410577
M14x2 10.00 27.00 10.00 3 73.00 C 3410580
M16x1.5 12.00 26.30 12.00 4 84.00 C 3410582
M16x2 11.80 27.00 12.00 4 84.00 C 3410567
M16x2 11.80 39.00 12.00 4 105.00 C 3410581
M20x1.5 16.00 33.80 16.00 6 105.00 C 3410578
M20x2.5 15.00 33.80 16.00 5 105.00 C 3410583
M20x2.5 15.00 48.80 16.00 5 105.00 C 3410584
M24x3 18.00 58.50 20.00 4 120.00 C 3410585
• For technical data see pages: 169-170
