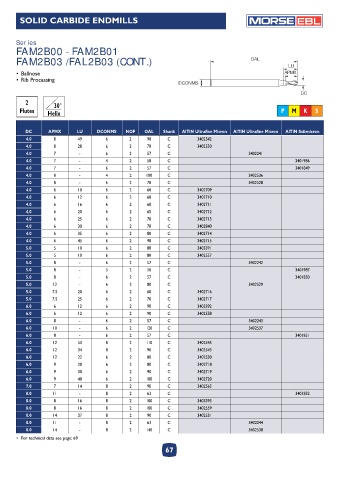

Page 67 - Morse_catalog_2022

SOLID CARBIDE ENDMILLS EBL

Series
FAM2B00 - FAM2B01
FAM2B03 /FAL2B03 (CONT.) OAL LU

• Ballnose APMX
• Rib Processing
DCONMS
DC
2 30°
Flutes Helix P M K S

DC APMX LU DCONMS NOF OAL Shank AlTiN Ultrafine Micron AlTiN Ultrafine Micron AlTiN Submicron
4.0 8 49 6 2 90 C 3402542
4.0 8 28 6 2 70 C 3402550
4.0 7 - 6 2 57 C 3402241
4.0 7 - 4 2 50 C 3401986
4.0 7 - 6 2 57 C 3401849
4.0 8 - 4 2 100 C 3402536
4.0 8 - 6 2 70 C 3402528
4.0 6 10 6 2 60 C 3402709
4.0 6 12 6 2 60 C 3402710
4.0 6 16 6 2 60 C 3402711
4.0 6 20 6 2 65 C 3402712
4.0 6 25 6 2 70 C 3402713
4.0 6 30 6 2 70 C 3402840
4.0 6 35 6 2 80 C 3402714
4.0 6 45 6 2 90 C 3402715
5.0 5 10 6 2 80 C 3403391
5.0 5 10 6 2 80 C 3402557
5.0 8 - 6 2 57 C 3402242
5.0 8 - 5 2 50 C 3401987
5.0 8 - 6 2 57 C 3401850
5.0 12 - 6 2 80 C 3402529
5.0 7.5 20 6 2 60 C 3402716
5.0 7.5 25 6 2 70 C 3402717
6.0 6 12 6 2 90 C 3403392
6.0 6 12 6 2 90 C 3402558
6.0 8 - 6 2 57 C 3402243
6.0 10 - 6 2 120 C 3402537
6.0 8 - 6 2 57 C 3401851
6.0 12 53 8 2 110 C 3402545
6.0 12 34 8 2 90 C 3402543
6.0 12 22 6 2 80 C 3402530
6.0 9 20 6 2 80 C 3402718
6.0 9 30 6 2 90 C 3402719
6.0 9 40 6 2 100 C 3402720
7.0 7 14 8 2 90 C 3402563
8.0 11 - 8 2 63 C 3401852
8.0 8 16 8 2 100 C 3403393
8.0 8 16 8 2 100 C 3402559
8.0 14 27 8 2 90 C 3402531
8.0 11 - 8 2 63 C 3402244
8.0 14 - 8 2 140 C 3402538
• For technical data see page: 69
