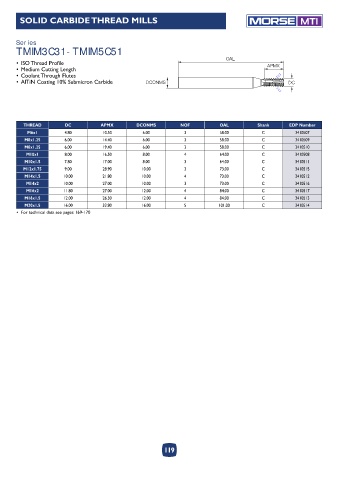

Page 119 - Morse_catalog_2022

SOLID CARBIDE THREAD MILLS MTI

Series
TMIM3C31 - TMIM5C51
OAL
• ISO Thread Profile APMX
• Medium Cutting Length
• Coolant Through Flutes
• AlTiN Coating 10% Submicron Carbide DCONMS DC

THREAD DC APMX DCONMS NOF OAL Shank EDP Number
M6x1 4.80 10.50 6.00 3 58.00 C 3410507
M8x1.25 6.00 14.40 6.00 3 58.00 C 3410509
M8x1.25 6.00 19.40 6.00 3 58.00 C 3410510
M10x1 8.00 16.50 8.00 4 64.00 C 3410508
M10x1.5 7.80 17.00 8.00 3 64.00 C 3410511
M12x1.75 9.00 28.90 10.00 3 73.00 C 3410515
M14x1.5 10.00 21.80 10.00 4 73.00 C 3410512
M14x2 10.00 27.00 10.00 3 73.00 C 3410516
M16x2 11.80 27.00 12.00 4 84.00 C 3410517
M16x1.5 12.00 26.30 12.00 4 84.00 C 3410513
M20x1.5 16.00 33.80 16.00 5 101.00 C 3410514
• For technical data see pages: 169-170
