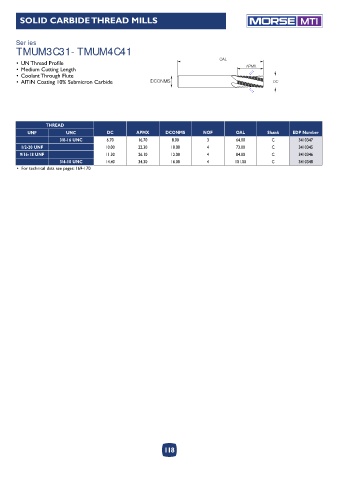

SOLID CARBIDE THREAD MILLS MTI

Series
TMUM3C31 - TMUM4C41
OAL
• UN Thread Profile
• Medium Cutting Length APMX
• Coolant Through Flute
• AlTiN Coating 10% Submicron Carbide DCONMS DC

THREAD
UNF UNC DC APMX DCONMS NOF OAL Shank EDP Number
3/8-16 UNC 6.70 16.70 8.00 3 64.00 C 3410347
1/2-20 UNF 10.00 22.30 10.00 4 73.00 C 3410345
9/16-18 UNF 11.30 26.10 12.00 4 84.00 C 3410346
3/4-10 UNC 14.40 34.30 16.00 4 101.00 C 3410348
• For technical data see pages: 169-170
