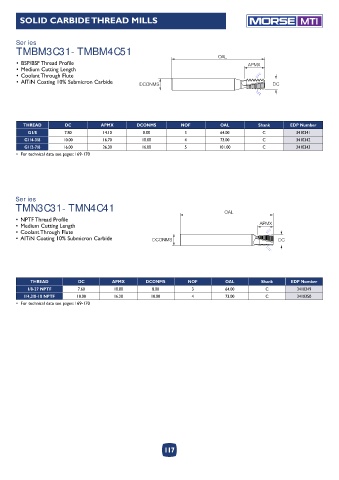

SOLID CARBIDE THREAD MILLS MTI

Series
TMBM3C31 - TMBM4C51
OAL
• BSP/BSF Thread Profile APMX
• Medium Cutting Length
• Coolant Through Flute
• AlTiN Coating 10% Submicron Carbide DCONMS DC

THREAD DC APMX DCONMS NOF OAL Shank EDP Number
G1/8 7.80 14.10 8.00 3 64.00 C 3410341
G1/4-3/8 10.00 16.70 10.00 4 73.00 C 3410342
G1/2-7/8 16.00 26.30 16.00 5 101.00 C 3410343
• For technical data see pages: 169-170

Series
TMN3C31 - TMN4C41 OAL
• NPTF Thread Profile
• Medium Cutting Length APMX
• Coolant Through Flute
• AlTiN Coating 10% Submicron Carbide DCONMS DC

THREAD DC APMX DCONMS NOF OAL Shank EDP Number
1/8-27 NPTF 7.60 10.80 8.00 3 64.00 C 3410349
1/4,3/8-18 NPTF 10.00 16.20 10.00 4 73.00 C 3410350
• For technical data see pages: 169-170
